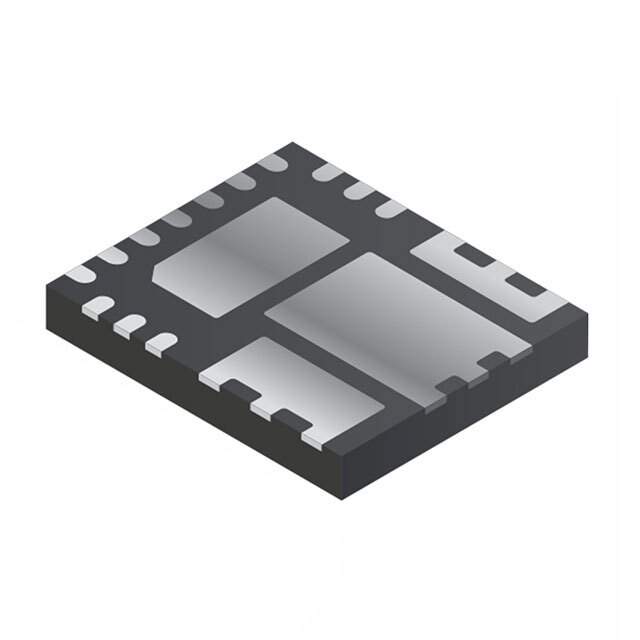

XR76117EL-F Real Image
Same model may have multiple batches, images only for reference.

XR76117EL-F

Part No XR76117EL-F
Manufacturer Exar Corporation
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description PowerBloxTM 15A Synchronous
Datasheet
XR76117EL-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Exar Corporation
Series Power Blox
Packaging Bulk
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 22V
Output Voltage 0.6V
Output Voltage MAX 22V
Output Current 15A
Frequency - Switching 200kHz ~ 1MHz
Synchronous Rectifier Yes
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting SMD
Package 16-PowerVQFN
Manufacturer Package 16-QFN (5x6)
Win Source Part Number 1282302-XR76117EL-F
Manufacturer Homepage www.exar.com
Popularity Medium
Supply and Demand Status Limited
Family Name XR76117
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian XR76117EL-F CAD Model

Description

The Exar Corporation XR76117EL-F is an integrated circuit that belongs to the Power Blox series.

  • Function: Step-Down
  • Topology: Buck
  • Package: 16-PowerVQFN
  • Rectifier Type: Synchronous
  • Current - Output: 15A
  • Voltage - Output Max: 22V
  • Voltage - Input: 4.5V to 22V
  • Estimated EOL Date: Obsolete
  • Frequency - Switching: 200kHz to 1MHz
