Same model may have multiple batches, images only for reference.

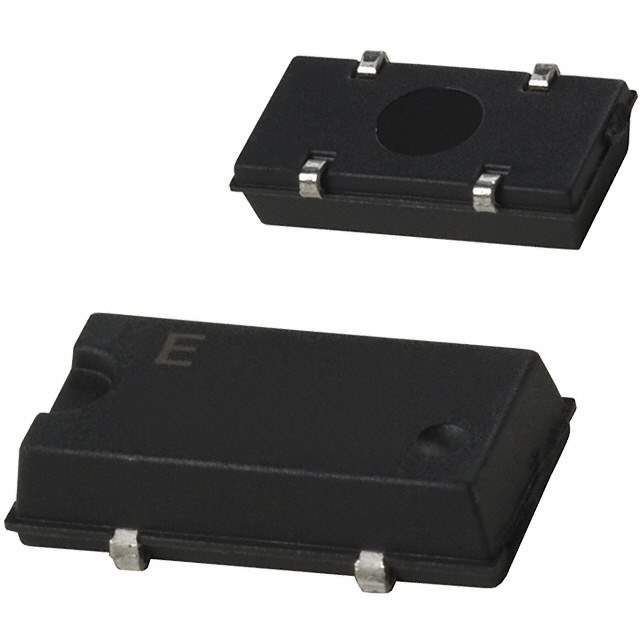

SG-636PTF 32.0000MC Real Image
Same model may have multiple batches, images only for reference.

SG-636PTF 32.0000MC

Part No SG-636PTF 32.0000MC
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 32.0000MHZ CMOS TTL / 32 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Datasheet
SG-636PTF 32.0000MC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG-636
Package Tape & Reel (TR)
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 32 MHz
Function Enable/Disable
Output CMOS, TTL
Voltage - Supply 5V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 17mA
Mounting SMD (SMT)
Package / Case 4-SOJ, 5.08mm pitch
Dimension 0.413" L x 0.197" W (10.50mm x 5.00mm)
Height - Seated (Max) 0.106" (2.70mm)
Current - Supply (Disable) (Max) 10mA
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Other Names SG-636PTF-32.0000MC,SG636PTF32.0000MC
Standard Package 250
Win Source Part Number 1092598-SG-636PTF 32.0000MC
Ultra Librarian 3D Model Ultra Librarian SG-636PTF 32.0000MC CAD Model

Description

The SG-636PTF 32.0000MC is a crystal oscillator that is widely used in various electronic applications.

  • Type: standard XO type oscillator
  • Frequency: 32 MHz
  • Output: CMOS or TTL
  • Frequency Stability: ±100ppm
  • Maximum Current Supply: 17mA
  • Package: 4-SOJ with a 5.08mm pitch
  • Height: 0.106" (2.70mm)
  • Packaging: tape and reel packaging with a standard package of 250
  • Temperature Range: -20°C to 70°C
