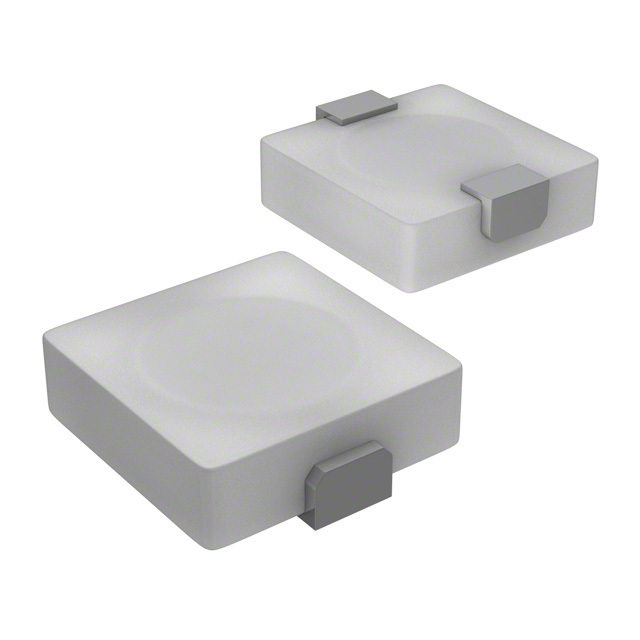

HCM1103-100-R Eaton Bussmann – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HCM1103-100-R

Part No HCM1103-100-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description 10 µH Shielded Drum Core, Wirewound Inductor 5 A 44mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Eaton - Electronics Division
Series HCM1103
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 7.5A
Shielding Shielded
DC Resistance (DCR) 44mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1478042-HCM1103-100-R
Ultra Librarian 3D Model Ultra Librarian HCM1103-100-R CAD Model
