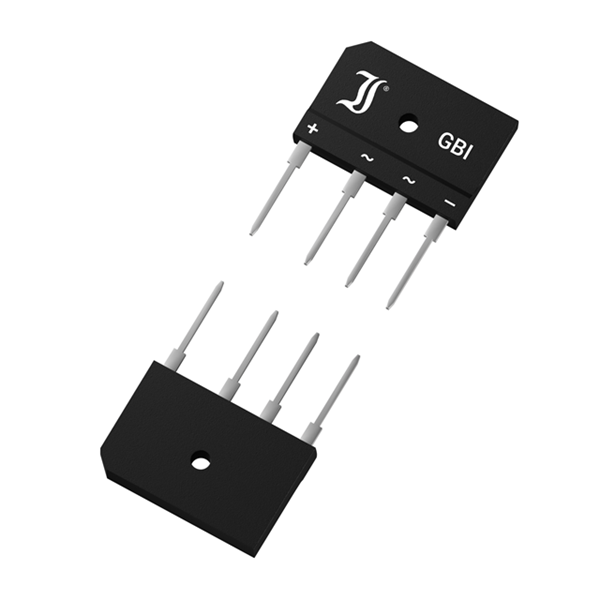

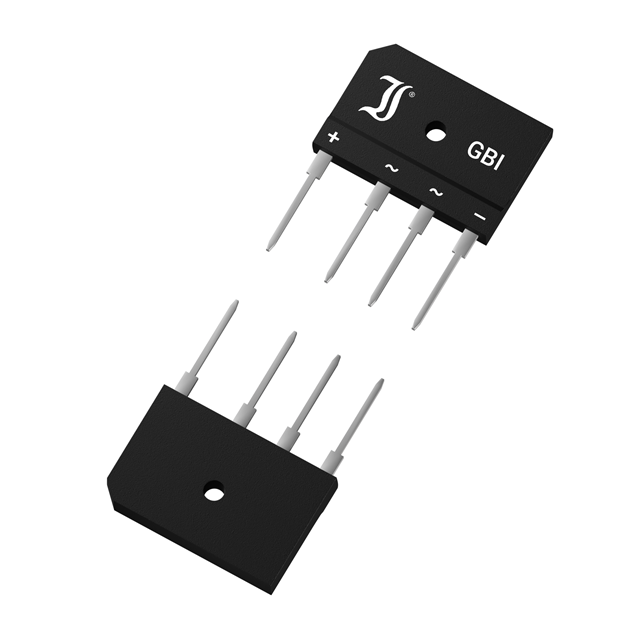

GBI15K Real Image
Same model may have multiple batches, images only for reference.

GBI15K

Part No GBI15K
Manufacturer DIOTEC Electronics Corporation
Catalog Bridge Rectifiers
Description 1PH BRIDGE 30X20X3.6 800V 15A / Bridge Rectifier Single Phase Standard 800 V Through Hole GBI
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Diotec Semiconductor
Package Box
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 3.2 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 7.5 A
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBI
Supplier Device Package GBI
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2796-GBI15K
Standard Package 500
Win Source Part Number 1003980-GBI15K
Ultra Librarian 3D Model Ultra Librarian GBI15K CAD Model

Description

The GBI15K is a high-performance diode bridge rectifier manufactured by Diotec Semiconductor.

  • Category: Discrete Semiconductor Products>Diodes - Bridge Rectifiers
  • Features: High current and voltage capabilities
  • Applications: Power supplies, DC motor drives, and battery chargers
