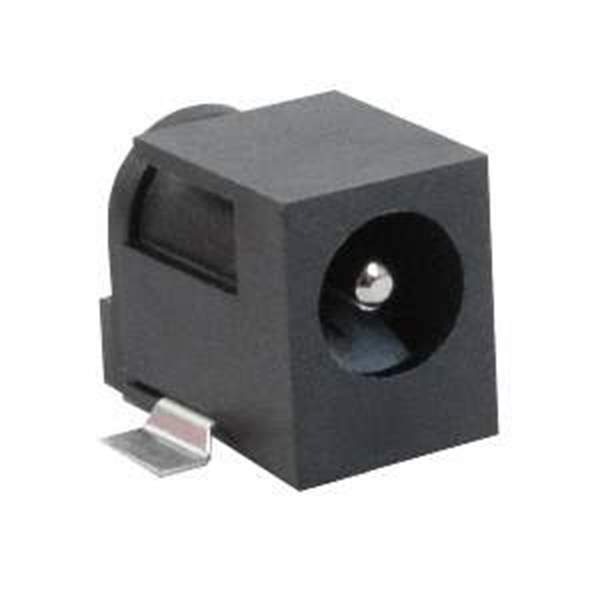

The CUI Devices PJ-036AH-SMT-TR is a surface mount right angle jack power connector.

• Voltage Rating: 24VDC
• Current Rating: 5 amps
• Number of Conductors: 2
• Number of Contacts: 3
• Switch: Single, Normally Closed
• Contact Material: Brass and Copper Alloy with Silver Plating
• Shielding: Unshielded
• Flammability Rating: UL94 V-0
• Housing Material: Polyamide (PA6T) and Nylon 6T
• Body Color: Black
• Mating Diameter: 2.10mm ID (0.083") / 5.50mm OD (0.217")
• Actual Diameter: 0.079" (2.00mm ID) / 0.248" (6.30mm OD)
• Mating Length/Depth: 0.360" (9.15mm)
• Operating Temperature: -25°C to 85°C
• ECCN: EAR99
• ROHS3 Compliant: Yes
