Same model may have multiple batches, images only for reference.

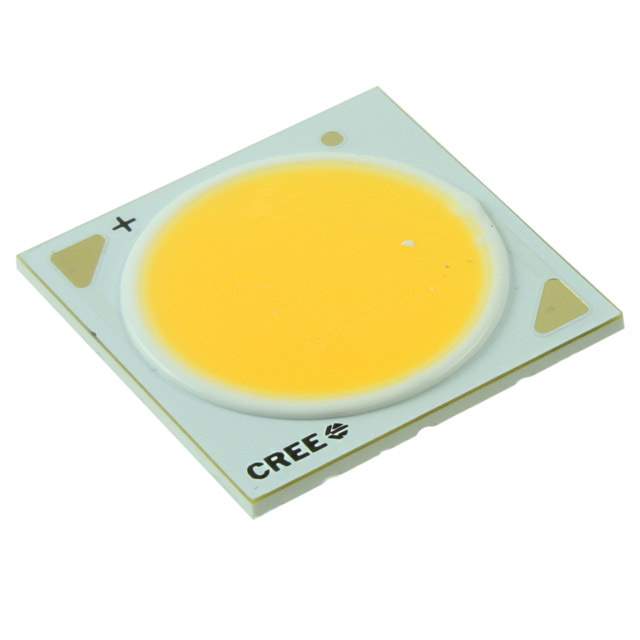

CXA2520-0000-000N0UN227G Real Image
Same model may have multiple batches, images only for reference.

CXA2520-0000-000N0UN227G

Part No CXA2520-0000-000N0UN227G
Manufacturer Cree Inc.
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB CXA2520 2700K WHITE SMD
Datasheet
CXA2520-0000-000N0UN227G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Cree Inc.
Packaging Tray
Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Square
Flux @ Current/Temperature - Test 1650 lm (1590 lm to 1710 lm)
Current - Test 550mA
Temperature - Test 85°C
Forward Voltage 36V
Lumens/Watt @ Current - Test 83 lm/W
Current - Max 1.25A
CRI (Color Rendering Index) 90
Viewing Angle 115°
Height 1.70mm
Light Emitting Surface (LES) 19.00mm Diameter
Lens Type Flat
Win Source Part Number 1116426-CXA2520-0000-000N0UN227G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CXA2520-0000-000N0UN227G CAD Model

Description

This is a white and warm-colored chip-on-board (COB) manufactured by Cree Inc.

  • Win Source Part Number: 1116426-CXA2520-0000-000N0UN227G
  • Forward Voltage: 36V
  • Viewing Angle: 115°
  • Current Test: 550mA
  • Lumens/Watt @ Current Test: 83 lm/W
  • CRI (Color Rendering Index): 90
  • CCT (K): 2700K 3-Step MacAdam Ellipse
  • Flux @ Current/Temperature-Test: 1650 lm (1590 lm to 1710 lm)
  • Temperature-Test: 85°C
  • Height: 1.70mm
  • Lens Type: Flat
  • Light-Emitting Surface (LES): 19.00mm diameter
  • Market Status: Popular
  • Supply and Demand: Balanced
