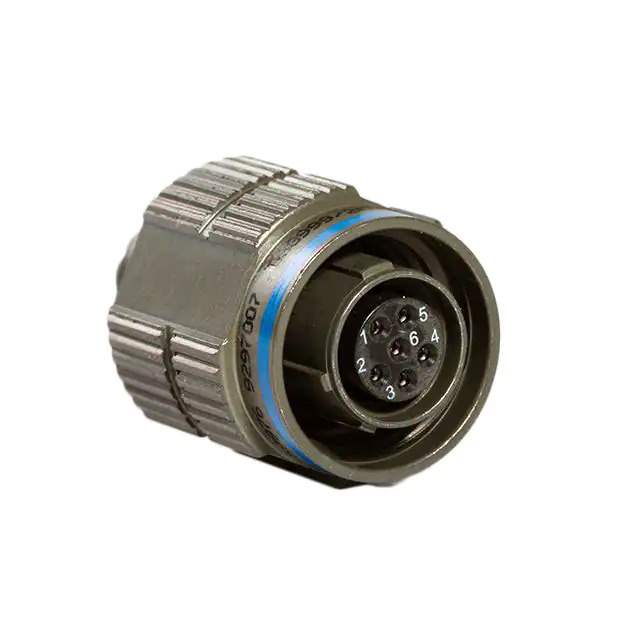

D38999/24WJ11PN-LC Real Image
Same model may have multiple batches, images only for reference.

D38999/24WJ11PN-LC

Part No D38999/24WJ11PN-LC
Manufacturer Conesys
Catalog Circular Connectors - Housings
Description AE3 11C 2#20, 9#10 PIN RECP
Datasheet
D38999/24WJ11PN-LC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr Conesys
Series Military, MIL-DTL-38999 Series III
Package Box
Product Status Active
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 11
Shell Size - Insert J-11
Shell Size, MIL J
Contact Type Crimp
Contact Size 10 (9), 20 (2)
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Fastening Type Threaded
Orientation N (Normal)
Shell Material Aluminum
Shell Finish Cadmium
Housing Color Olive Drab
Shielding Shielded
Note Contacts Not Included
Temperature Range - Operating -65°C ~ 175°C
Base Product Number D38999/24WJ
Standard Package 1 pcs
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1004992-D38999/24WJ11PN-LC
Ultra Librarian 3D Model Ultra Librarian D38999/24WJ11PN-LC CAD Model

Description

The 1004992-D38999/24WJ11PN-LC is a circular connector housing from the Military, MIL-DTL-38999 Series III series.

  • Designed for: Male pins
  • Positions: 11
  • Connector Type: Receptacle Housing
  • Contacts: Crimp
  • Fastening Type: Threaded
  • Shell Material: Aluminum
  • Housing Color: Olive Drab
  • Mounting: Panel Mount
  • Temperature Range: -65°C to 175°C
  • Status: Active
  • Manufacturer: Conesys
