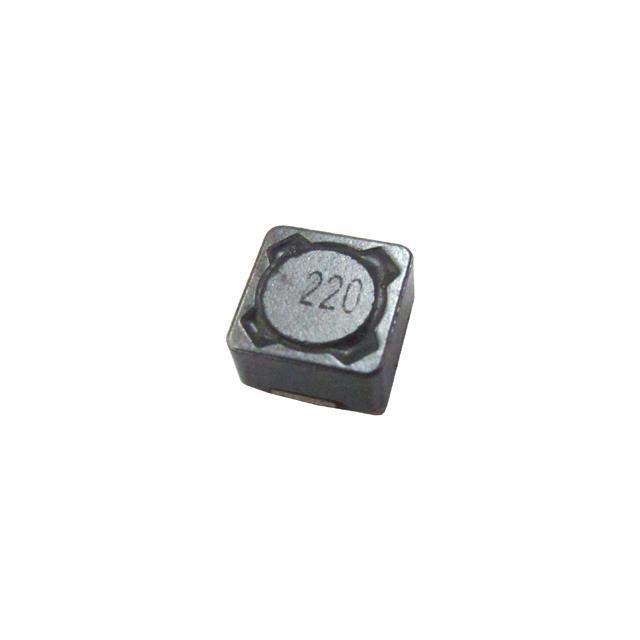

Same model may have multiple batches, images only for reference.

BPSC00070745101M00

Get a Quote

Part No	BPSC00070745101M00
Manufacturer	Chilisin
Catalog	Fixed Inductors
Description	INDUCTOR POWER / 100 µH Shielded Inductor 610mOhm Max Nonstandard
Datasheet	BPSC00070745101M00 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Chilisin Electronics
Series	BPSC
Package	Tape & Reel
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±20%
Current - Saturation (Isat)	600mA
Shielding	Shielded
DC Resistance (DCR)	610mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max)	0.177" (4.50mm)
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1350141-BPSC00070745101M00
Ultra Librarian 3D Model	Ultra Librarian BPSC00070745101M00 CAD Model

Alternative Products

Description

The Chilisin 1350141-BPSC00070745101M00 is a shielded fixed inductor that belongs to the BPSC series of electronic components. It has a package size of 0.287" L x 0.287" W (7.30mm x 7.30mm) and an inductance of 100 µH.

Series: BPSC
Package Size: 0.287" L x 0.287" W (7.30mm x 7.30mm)
Inductance: 100 µH
Tolerance: ±20%
Height - Seated (Max): 0.177" (4.50mm)
Mounting Type: Surface Mount
DC Resistance (DCR): 610mOhm Max
Win Source Part Number: 1350141-BPSC00070745101M00
Manufacturer: Chilisin
