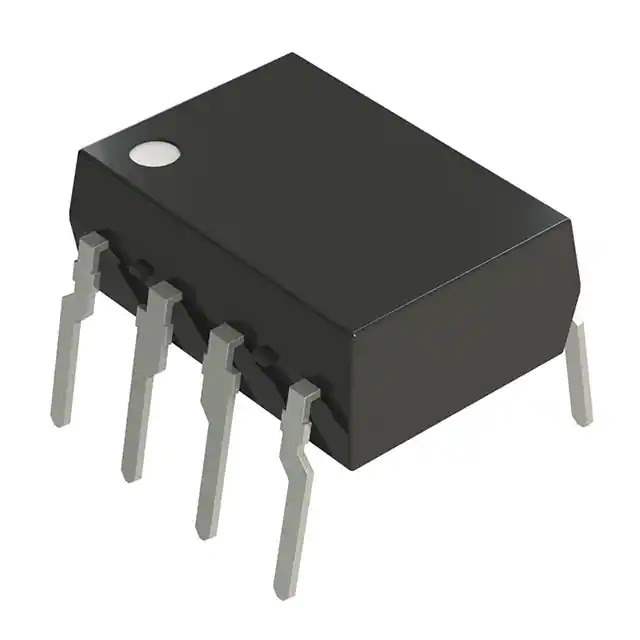

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr CEL
Series PS, OCMOS
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 400 V
Load Current 120 mA
On-State Resistance (Max) 35 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 657061-PS7141C-2A-A
Ultra Librarian 3D Model Ultra Librarian PS7141C-2A-A CAD Model

Description

The PS7141C-2A-A is a solid state relay from the PS series by CEL.

  • Relay Type: Solid State Relay
  • Series: PS
  • Configuration: Double Pole Single Throw (SPST-NO)
  • Maximum On-State Resistance: 35 Ohms
  • Load Current Capacity: 120 mA
  • Voltage Range: 0 V to 400 V
  • Input Voltage: 1.2VDC
  • Mounting Type: Through-Hole
  • Package: 8-DIP
  • Status: Obsolete
  • Moisture Sensitivity Level: 1
