Same model may have multiple batches, images only for reference.

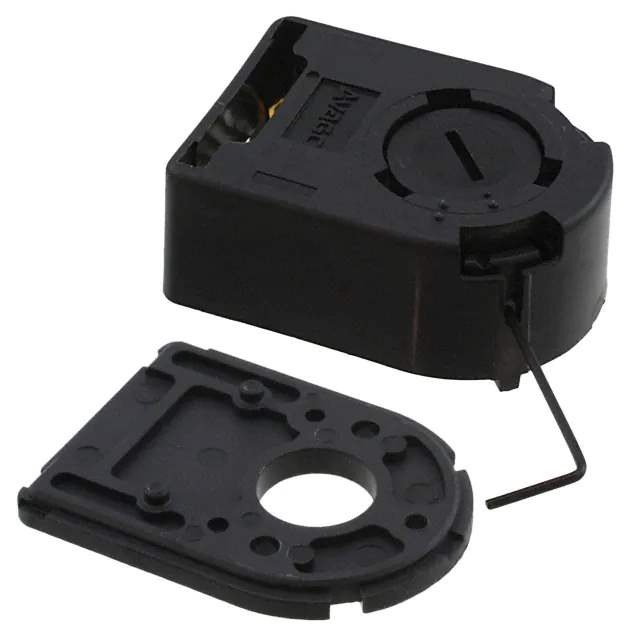

HEDS-5540#A02 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5540#A02

Part No HEDS-5540#A02
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 500PPR / Rotary Encoder Optical 500 Quadrature with Index (Incremental) Vertical
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Broadcom Limited
Series HEDS
Package Bulk
Product Status Active
Programmable Not Verified
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type 3mm Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Base Product Number HEDS-5540
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 920147-HEDS-5540#A02
Ultra Librarian 3D Model Ultra Librarian HEDS-5540#A02 CAD Model

Description

The HEDS-5540#A02 is an encoder designed for sensing and measuring rotational movement. It is part of the HEDS series and has a vertical orientation.

  • Output: Quadrature
  • Incremental Pulse Count: 500 per revolution
  • Voltage Supply: 5V
  • Mounting: Chassis or motors
  • Switch: No built-in switch
  • Programmable: No
  • Manufacturer: Broadcom Limited
  • Status: Active
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8543.70.4500
