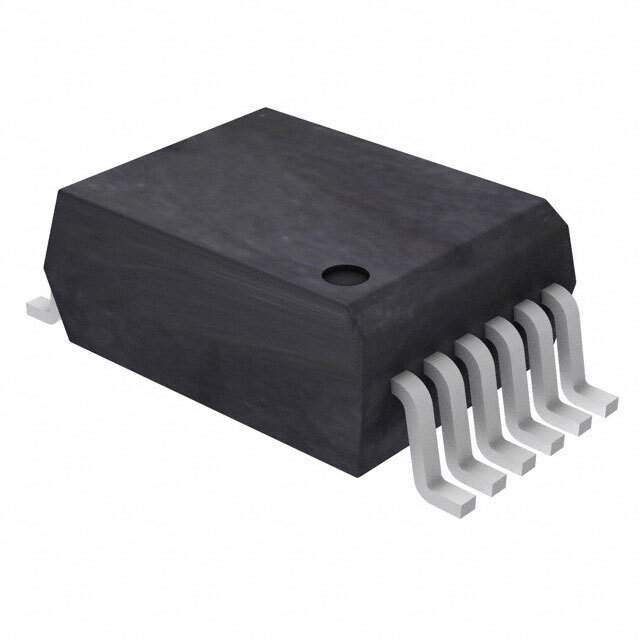

ACFL-5211T-000E Real Image
Same model may have multiple batches, images only for reference.

ACFL-5211T-000E

Part No ACFL-5211T-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV 2CH TRANS / Optoisolator Transistor Output 5000Vrms 2 Channel 12-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Broadcom Limited
Series Automotive, AEC-Q100, R²Coupler™
Package Bulk
Number of Channels 2
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 32% @ 10mA
Current Transfer Ratio (Max) 100% @ 10mA
Turn On / Turn Off Time (Typ) 150ns, 500ns
Input Type DC
Output Type Transistor
Voltage - Output (Max) 20V
Current - Output / Channel 8mA
Voltage - Forward (Vf) (Typ) 1.55V
Current - DC Forward (If) (Max) 20 mA
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 12-SOIC (0.295", 7.50mm Width)
Supplier Device Package 12-SO
Base Product Number ACFL-5211
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names ACFL-5211T-000E-ND,516-3282
Standard Package 80
Win Source Part Number 1042554-ACFL-5211T-000E
Ultra Librarian 3D Model Ultra Librarian ACFL-5211T-000E CAD Model

Description

The ACFL-5211T-000E is an optoisolator transistor with a photovoltaic output. It is manufactured by Broadcom Limited and has a Win Source Part Number of 1042554.

  • Product Series: Automotive, AEC-Q100, R²Coupler™
  • Package: Bulk
  • Standard Package: 80
  • Mounting Type: SMD (SMT)
  • Output Type: 2-channel
  • Input Type: DC
  • Current - DC Forward (If) (Max): 20mA
  • Voltage - Forward (Vf) (Typ): 1.55V
  • Voltage Isolation: 5000Vrms
  • Current Transfer Ratio (Min): 32% @ 10mA
  • Temperature Range: -40°C ~ 125°C
  • Turn On/Turn Off Time (Typ): 150ns, 500ns
  • HTSUS Code: 8541.49.8000
