Same model may have multiple batches, images only for reference.

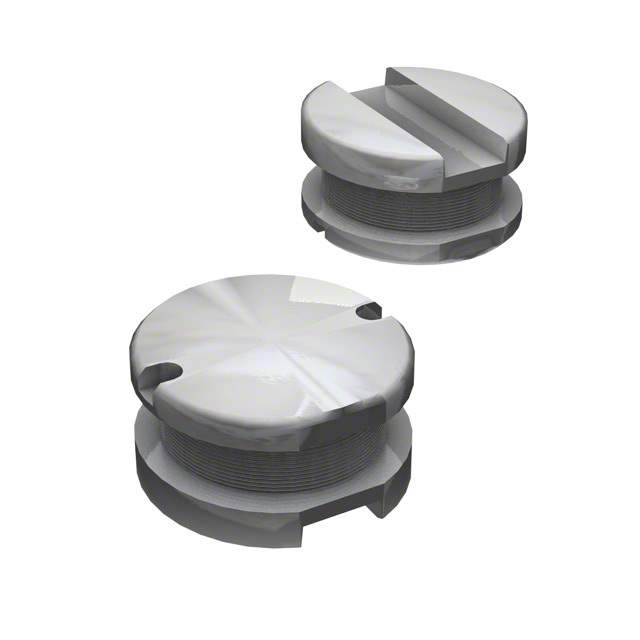

SDR1307-271KL Real Image
Same model may have multiple batches, images only for reference.

SDR1307-271KL

Part No SDR1307-271KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 270UH 1.2A 410MOHM SMD / 270 µH Unshielded Drum Core, Wirewound Inductor 1.2 A 410mOhm Max Nonstandard
Datasheet
SDR1307-271KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 270 µH
Tolerance ±10%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 1.8A
Shielding Unshielded
DC Resistance (DCR) 410mOhm Max
Q @ Freq 15 @ 796kHz
Frequency - Self Resonant 3.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SDR1307-271KL-ND,SDR1307271KL,SDR1307-271KLCT,SDR1307-271KLTR,SDR1307-271KLDKR
Standard Package 400
Win Source Part Number 984647-SDR1307-271KL
Ultra Librarian 3D Model Ultra Librarian SDR1307-271KL CAD Model

Description

The Bourns Inc. SDR1307-271KL is a fixed inductor with an inductance of 270 µH and a tolerance of ±10%.

  • Inductance: 270 µH
  • Tolerance: ±10%
  • Type: Drum core, wirewound
  • Shielding: Unshielded
  • Package: Nonstandard
  • Packaging: Tape and reel
  • Series: SDR1307
  • Q @ Freq: 15 @ 796kHz
  • Frequency Self-Resonant: 3.5MHz
  • DC Resistance (DCR): 410mOhm Max
  • Supplier Device Package: -
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.512" L x 0.512" W (13.00mm x 13.00mm)
  • Popularity: Low popularity
  • Supply and Demand: Balance
