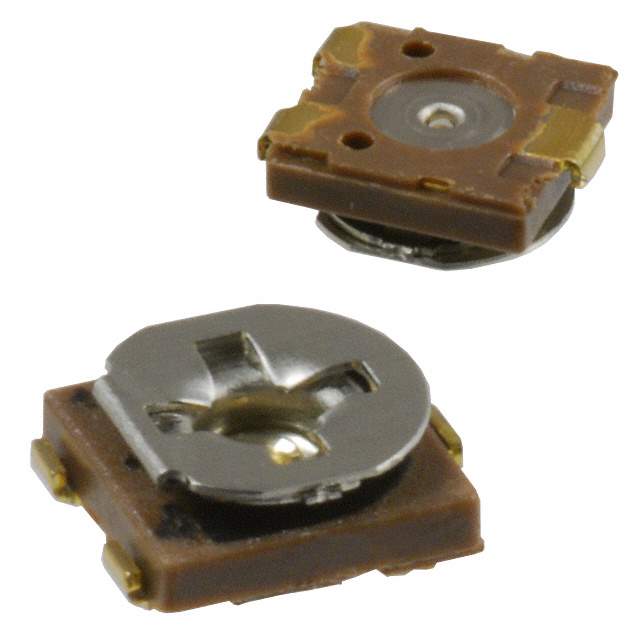

PVZ3G153C01R00 Real Image
Same model may have multiple batches, images only for reference.

PVZ3G153C01R00

Part No PVZ3G153C01R00
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description TRIMMER 15K OHM 0.1W SMD / 15 kOhms 0.1W, 1/10W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
Datasheet
PVZ3G153C01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series PVZ3
Package Cut Tape (CT),
Product Status Obsolete
Resistance 15 kOhms
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Temperature Coefficient ±500ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting SMD (SMT)
Termination Style J Lead
Dimension Square - 0.122" x 0.122" Face (3.10mm x 3.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 490-4615-6,490-4615-1,490-4615-2
Standard Package 2,500
Win Source Part Number 981170-PVZ3G153C01R00
Ultra Librarian 3D Model Ultra Librarian PVZ3G153C01R00 CAD Model

Description

This electronic component is a trimmer potentiometer that comes with a Win Source Part Number of 981170-PVZ3G153C01R00. It belongs to the Potentiometers, Variable Resistors category and is a part of the PVZ3 series.

  • Win Source Part Number: 981170-PVZ3G153C01R00
  • Category: Potentiometers, Variable Resistors
  • Series: PVZ3
  • Resistance: 15 kOhms
  • Power Rating: 0.1W, 1/10W
  • Adjustment: Top
  • Termination: J Lead
  • Package: Cut Tape (CT)
  • Standard Package: 2,500
  • Resistive Material: Carbon
