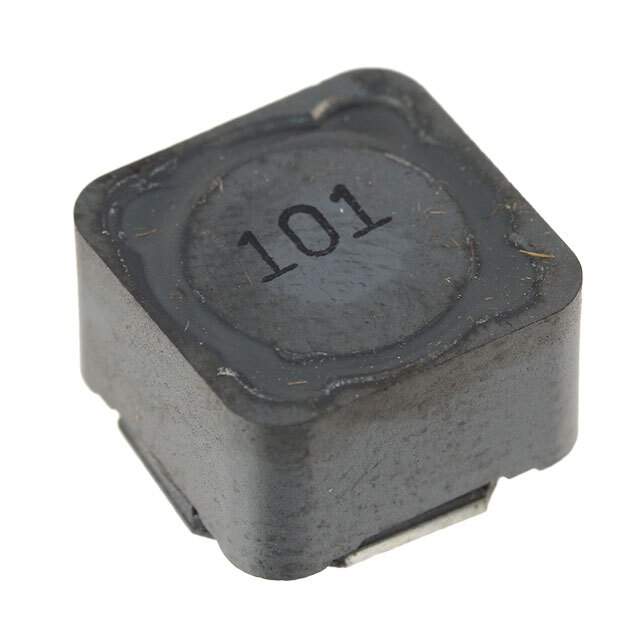

Same model may have multiple batches, images only for reference.

SRR1280-180M

Name: SRR1280-180M
Brand: Bourns Inc.
SKU: 1273405
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1280-180M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRR1280-180M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR1280
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	18 µH
Tolerance	±20%
Current Rating (Amps)	4.8 A
Current - Saturation (Isat)	4.6A
Shielding	Shielded
DC Resistance (DCR)	35mOhm Max
Q @ Freq	24 @ 2.52MHz
Frequency - Self Resonant	12MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.315" (8.00mm)
Base Product Number	SRR1280
Other Names	-SRR1280-180M,SRR1280180M,SRR1280-180MDKR,-SRR1280-180M,-SRR1280-180MCT,SRR1280-180M,-SRR1280-180MTR,SRR1280-180MTR,SRR1280-180MCT
Standard Package	400
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1273405-SRR1280-180M
Ultra Librarian 3D Model	Ultra Librarian SRR1280-180M CAD Model

Alternative Products

Description

The SRR1280-180M is a drum core, wirewound inductor from Bourns Inc.

Shielded: shielded
Inductance: 18 µH
Tolerance: ±20%
Q @ Freq: 24 @ 2.52MHz
Frequency of Self-Resonant: 12MHz
DC Resistance (DCR): 35mOhm Max
Package/Case: nonstandard
Height Seated (Max): 0.315" (8.00mm)
Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
Mounting: SMD (SMT)
Temperature Range: -40°C ~ 125°C
Current Rating: 4.8 A
Inductance Frequency-Test: 100 kHz
ECCN: EAR99
REACH: unaffected by REACH
