Same model may have multiple batches, images only for reference.

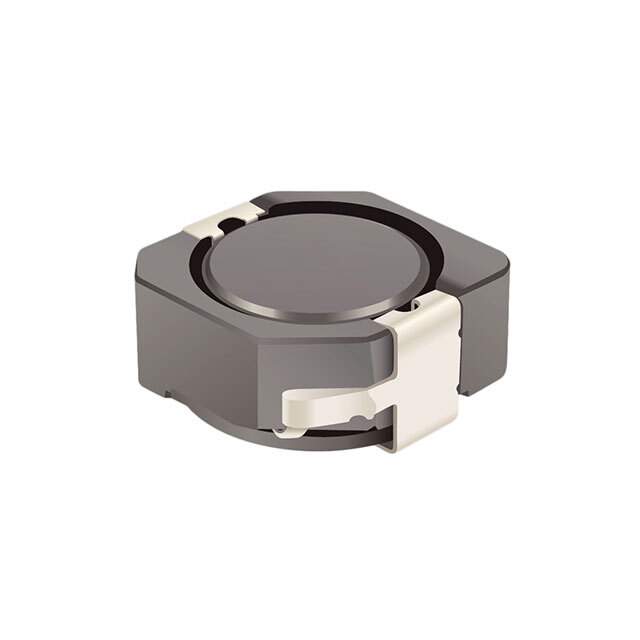

SRR1050A-680Y Real Image
Same model may have multiple batches, images only for reference.

SRR1050A-680Y

Part No SRR1050A-680Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1050A-680Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1050A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±30%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 1.65A
Shielding Shielded
DC Resistance (DCR) 208mOhm Max
Frequency - Self Resonant 5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SRR1050A
Other Names SRR1050A-680YDKR,SRR1050A-680YTR,SRR1050A-680YCT
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273552-SRR1050A-680Y
Ultra Librarian 3D Model Ultra Librarian SRR1050A-680Y CAD Model

Description

The Bourns Inc. 1273552-SRR1050A-680Y is a fixed inductor that has an inductance of 68 µH and a tolerance of ±30%.

  • Series: SRR1050A
  • Type: Shielded drum core, wirewound
  • Height: 0.201 inches (5.10mm)
  • Mounting: Surface mountable with an SMD (SMT) mounting type
  • Package/Case: Nonstandard
  • Temperature Range: -40°C ~ 125°C
  • DC Resistance (DCR): 208mOhm Max
  • Current Rating: 1.6 A
