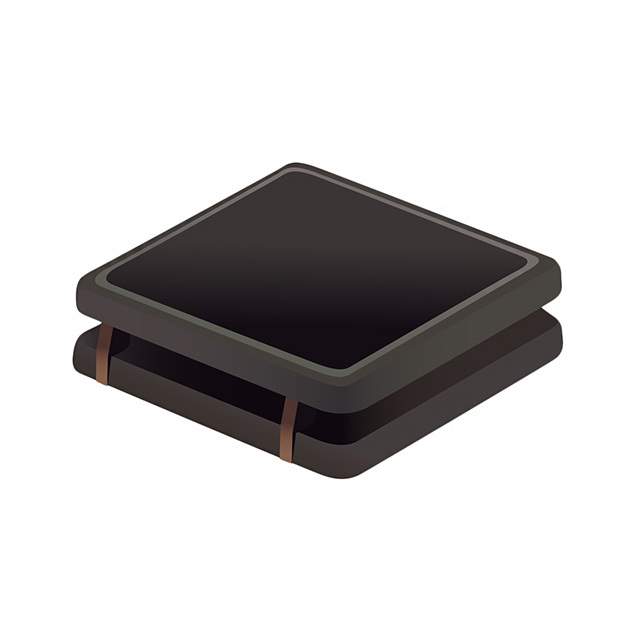

SRN3010TA-6R8M Real Image
Same model may have multiple batches, images only for reference.

SRN3010TA-6R8M

Part No SRN3010TA-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN3010TA-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN3010TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 770mA
Shielding Semi-Shielded
DC Resistance (DCR) 260mOhm
Q @ Freq 20 @ 1MHz
Frequency - Self Resonant 55MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number SRN3010TA
Other Names SRN3010TA-6R8MDKR,SRN3010TA-6R8MTR,SRN3010TA-6R8MCT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274386-SRN3010TA-6R8M
Ultra Librarian 3D Model Ultra Librarian SRN3010TA-6R8M CAD Model

Description

The SRN3010TA series from Bourns Inc. is a semi-shielded, drum core, wirewound fixed inductor.

  • Inductance: 6.8 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 260mOhm
  • Current Rating: 1 A
  • Current Saturation: 770mA
  • Height - Seated (Max): 0.039" (1.00mm)
  • Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Core Material: Ferrite
  • Q @ Freq: 20 @ 1MHz
  • Frequency - Self Resonant: 55MHz
  • Mounting Type: SMD (SMT)
