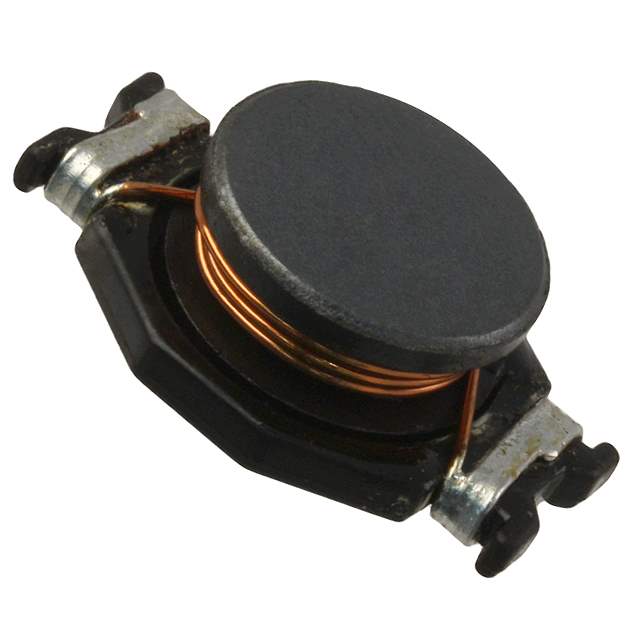

SDR2207-8R2ML Real Image
Same model may have multiple batches, images only for reference.

SDR2207-8R2ML

Part No SDR2207-8R2ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR2207-8R2ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR2207
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 7 A
Current - Saturation (Isat) 11A
Shielding Unshielded
DC Resistance (DCR) 15.5mOhm Max
Q @ Freq 35 @ 3MHz
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max) 0.307" (7.80mm)
Base Product Number SDR2207
Other Names -SDR2207-8R2MLTR,118-SDR2207-8R2MLDKR,SDR2207-8R2MLTR,118-SDR2207-8R2MLTR,-SDR2207-8R2MLCT,-SDR2207-8R2ML,SDR22078R2ML,-SDR2207-8R2ML,SDR2207-8R2ML,118-SDR2207-8R2MLCT,SDR2207-8R2MLCT,SDR2207-8R2MLCT,SDR2207-8R2MLTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274544-SDR2207-8R2ML
Ultra Librarian 3D Model Ultra Librarian SDR2207-8R2ML CAD Model

Description

The SDR2207-8R2ML is a fixed inductor electronic component manufactured by Bourns Inc.

  • Packaging: Tape and reel
  • Category: Inductors, Coils, Chokes
  • Type: Drum core, wirewound
  • Inductance: 8.2 μH
  • Shielding: Unshielded
  • Temperature Range: -40°C to 125°C
