Same model may have multiple batches, images only for reference.

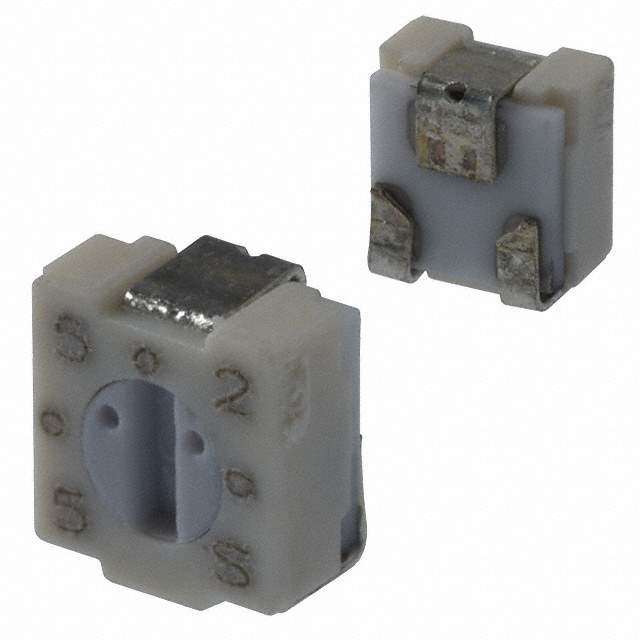

3313J-1-500E Real Image
Same model may have multiple batches, images only for reference.

3313J-1-500E

Part No 3313J-1-500E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 50 OHM 0.125W SMD
Datasheet
3313J-1-500E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3313 - Sealed
Packaging Reel package
Resistance (Ohms) 50
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±150ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD
Termination Style J Lead
Dimension Rectangular - 0.138" x 0.126" Face x 0.087" H (3.50mm x 3.20mm x 2.20mm)
Win Source Part Number 763264-3313J-1-500E
Family Name 3313
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3313J-1-500E CAD Model

Description

The Bourns 3313J-1-500E trimpot is a sealed type of potentiometer designed for various electronic applications.

  • Manufacturer: Bourns
  • Dimension: 0.138 inches x 0.126 inches face x 0.087 inches H (3.50mm x 3.20mm x 2.20mm)
  • Resistance: 50 ohms
  • Tolerance: ±20%
  • Power Rating: 0.125W (1/8W)
  • Temperature Coefficient: ±150ppm/°C
  • Adjustment Type: Top adjustment
  • Resistive Material: Cermet
  • Package: Reel
  • Termination Style: J lead
  • Mounting: Surface mountable
  • Series: Trimpot 3313 - Sealed
  • Standard Package: 1 unit
  • Alternative Parts (Cross-Reference): 22AR50LFTR, TS3YJ500MR15, and ST-32EA51
