Same model may have multiple batches, images only for reference.

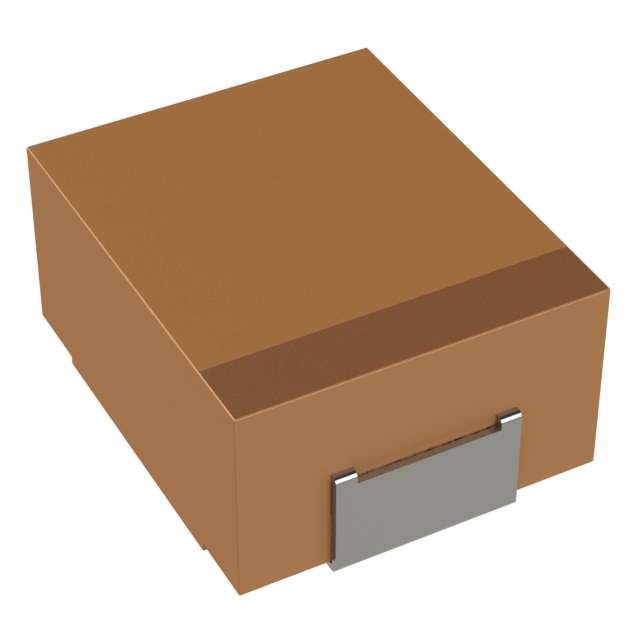

TPSV686M025R0080 Real Image
Same model may have multiple batches, images only for reference.

TPSV686M025R0080

Part No TPSV686M025R0080
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 68UF 25V 20% 2924 / Cap Tant Solid 68uF 25V V CASE 20% (7.3 X 6.1 X 3.55mm) Inward L SMD 7361-38 0.08 Ohm 125°C T/R
Datasheet
TPSV686M025R0080 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TPS
Packaging Reel package
Capacitance 68μF
Tolerance ±20%
Voltage Rating DC 25V
Type Molded
ESR (Equivalent Series Resistance) 80 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2924 (7361 Metric)
Dimension 0.287" L x 0.240" W (7.30mm x 6.10mm)
Height - Seated (Maximum) 0.148" (3.75mm)
Manufacturer Size Code V
Features General
Win Source Part Number 798340-TPSV686M025R0080
Popularity Medium
Supply and Demand Status Limited
Family Name TPS
Introduction Date May 05, 2009
ECCN EAR99
Country of Origin Czech Republic
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TPSV686M025R0080 CAD Model

Description

The AVX TPS series capacitor is a molded type capacitor from AVX.

  • Capacitance: 68μF
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 80 mOhm
  • Voltage Rating DC: 25V
  • Package: 2924 (7361 Metric)
  • Dimension: 0.287" L x 0.240" W (7.30mm x 6.10mm)
  • Maximum Seated Height: 0.148" (3.75mm)
  • Applications: General
  • Operating Temperature Range: -55°C to 125°C
  • Halogen Free: Yes
  • Estimated EOL Date: 2028
  • Supply: Limited
  • Popularity: Medium
  • Alternative Parts: LSR68/25ZM95, LSR68/25ZM200, LSR68/25ZM80, LSR68/25ZM150
