Product Overview: ADG1402BCPZ-REEL7 by Analog Devices Inc.

The ADG1402BCPZ-REEL7 is a high-performance, monolithic CMOS single-pole, double-throw (SPDT) switch from the renowned manufacturer Analog Devices Inc. This switch is designed to deliver exceptional signal integrity with minimal distortion and is part of the industry-leading range of switch and multiplexer products offered by the company.

Key Features

• Low On-Resistance: The device features a low on-resistance (RON) typically around 4 ohms, which ensures minimal signal loss and reduced power consumption.
• Single Supply Operation: The ADG1402BCPZ-REEL7 operates from a single supply range of 1.8 V to 5.5 V, making it compatible with a wide array of modern low-voltage applications.
• High Bandwidth: With a bandwidth of over 200 MHz, this switch is capable of handling high-speed signals without significant attenuation, making it ideal for precision applications.
• Low Charge Injection: The device exhibits low charge injection, which helps to maintain signal fidelity by reducing transient disturbances during switching.
• Extended Temperature Range: It is designed to operate over an extended industrial temperature range of -40°C to +125°C, ensuring reliable performance in harsh environmental conditions.

Applications

The ADG1402BCPZ-REEL7 is particularly suitable for a variety of applications that require high-speed and precision switching. It is commonly used in:

• Automatic Test Equipment (ATE)
• Data Acquisition Systems
• Communication Systems
• Audio and Video Switching
• Sample and Hold Circuits
• Battery Powered Systems

Packaging and Quality

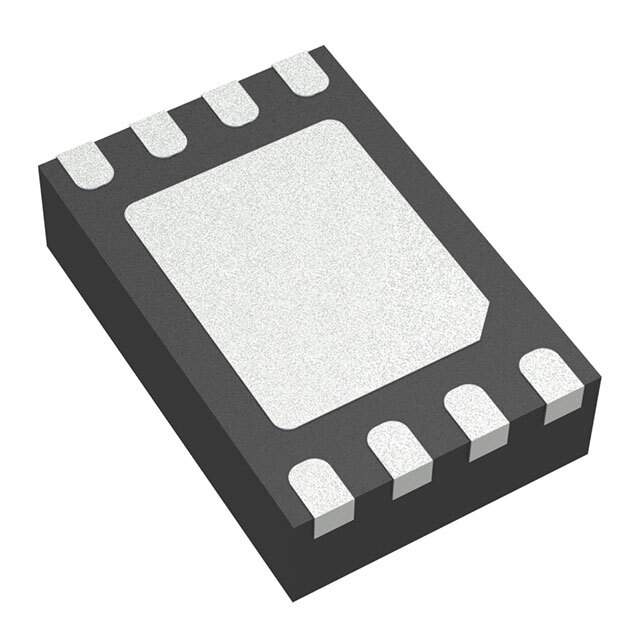

This product is offered in a compact 6-lead LFCSP (Lead Frame Chip Scale Package) and is provided in a tape and reel format with the designation "REEL7" for efficient handling and manufacturing integration. Analog Devices Inc. is known for its commitment to quality, and the ADG1402BCPZ-REEL7 is no exception, meeting stringent industry standards for performance and reliability.

With its combination of low on-resistance, high bandwidth, and low charge injection, the ADG1402BCPZ-REEL7 from Analog Devices Inc. represents a superior choice for designers looking for a reliable and efficient SPDT switch for their electronic systems.
