Analog Devices Inc. AD9523-1BCPZ-REEL7 Clock Generator

The AD9523-1BCPZ-REEL7 is a high-performance, mixed-signal clock generator IC designed by Analog Devices Inc. to deliver exceptional clocking solutions for telecommunications, networking, and data communications applications. This device provides a multi-output clock distribution function with sub-picosecond jitter performance, making it an ideal choice for supporting high-speed data converters and other demanding applications where signal integrity and synchronization are critical.

The AD9523-1BCPZ-REEL7 offers a versatile set of features that cater to a wide range of design requirements:

• Integrated PLL (Phase-Locked Loop): The device includes a PLL with a VCO (Voltage-Controlled Oscillator) that operates at a frequency range of 2.25 GHz to 2.65 GHz, providing flexible frequency synthesis and clock distribution.
• Multiple Outputs: It features 14 LVDS (Low-Voltage Differential Signaling) or 28 CMOS (Complementary Metal-Oxide-Semiconductor) outputs, allowing for a wide range of clocking configurations and the ability to drive multiple loads.
• Low Jitter Performance: With exceptional jitter performance, the AD9523-1BCPZ-REEL7 ensures high-quality signal integrity, which is essential for high-speed communication and data transfer.
• Programmable Output Frequencies: Output frequencies are highly programmable via a serial I/O port, offering designers flexibility in system design and the ability to fine-tune the clock signal for specific application requirements.
• Power Supply: The device operates from a 3.3V power supply, making it compatible with a range of industry-standard voltages and reducing power consumption.

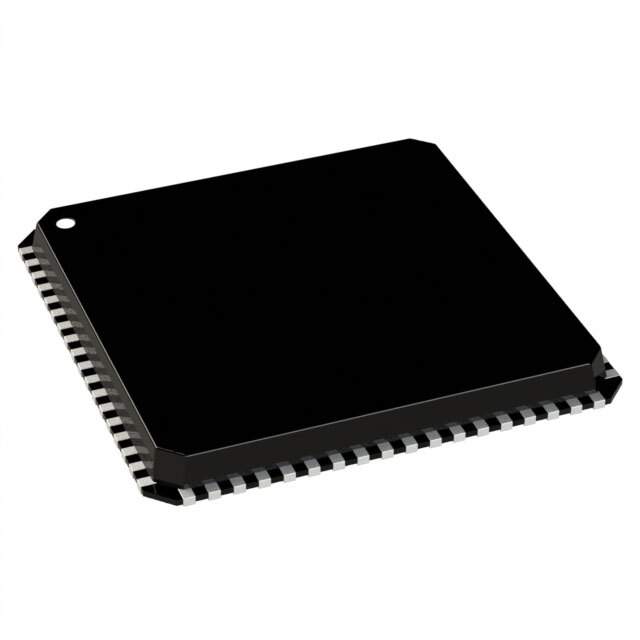

The AD9523-1BCPZ-REEL7 is packaged in a compact, 64-lead LFCSP (Lead Frame Chip Scale Package) that minimizes the footprint on the PCB (Printed Circuit Board) and is supplied in a tape and reel format, denoted by the "REEL7" suffix, for ease of handling and manufacturing automation.

With its robust feature set and high-performance specifications, the AD9523-1BCPZ-REEL7 from Analog Devices Inc. is an excellent choice for system designers looking to implement a reliable, high-quality clock distribution architecture in their next-generation communication and networking systems.
