The XCKU15P-1FFVE1517I is a Kintex UltraScale+ FPGA from AMD (formerly Xilinx). It is a high-performance programmable logic device designed for demanding applications requiring high bandwidth, low latency, and power efficiency.

Applications:

• Data center acceleration
• Network processing
• High-performance computing
• Test and measurement equipment
• Aerospace and defense applications

Features:

• Logic Cells: Approximately 1.1 million
• System Logic Cells: >1.7 million
• Memory: Over 75 Mb of Block RAM
• DSP Slices: 5520
• Transceivers: 32 x 32.75 Gbps transceivers
• I/O: Up to 1100 user I/Os

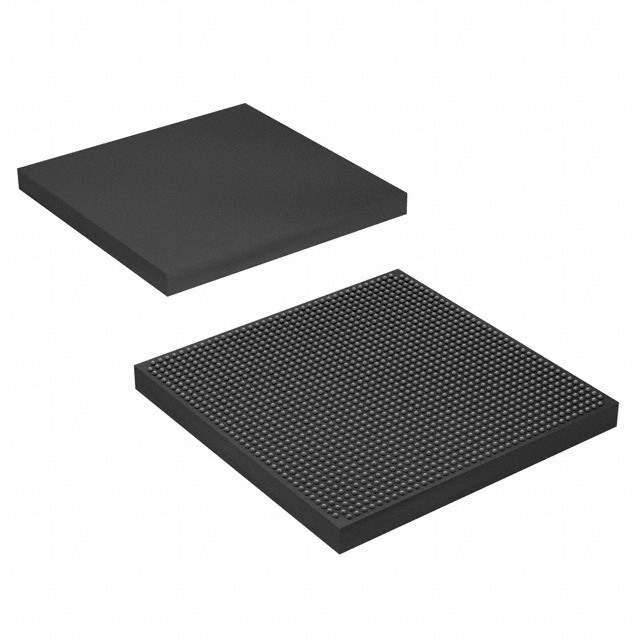

• Package: FFVE1517 (Flip-Chip Fine-Pitch Ball Grid Array)
• Operating Temperature: Industrial (-40°C to +100°C junction)
• Voltage: Core voltage 0.85V

Benefits:

• Extremely high logic density enables complex and sophisticated designs.
• High-speed transceivers provide exceptional bandwidth for data-intensive applications.
• Large Block RAM capacity allows for on-chip data storage and processing.
• DSP slices accelerate digital signal processing algorithms.
• Abundant user I/Os support a wide range of interface standards.
• The FFVE1517 package provides high pin density for maximum connectivity.
• Industrial temperature range ensures reliable operation in harsh environments.
• Low core voltage minimizes power consumption.

The Kintex UltraScale+ family provides leading-edge performance and power efficiency. This device is well-suited for applications requiring significant computational resources and high-speed data transfer. The combination of high logic density, advanced transceivers, and extensive memory resources makes this FPGA a powerful solution for demanding applications.
