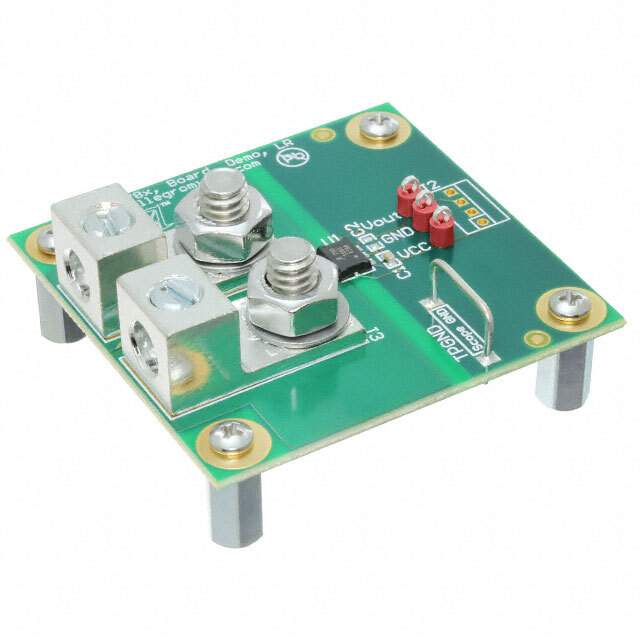

ASEK780KLR-150B-T-DK Real Image
Same model may have multiple batches, images only for reference.

ASEK780KLR-150B-T-DK

Part No ASEK780KLR-150B-T-DK
Manufacturer Allegro MicroSystems, LLC
Catalog Evaluation Boards - Sensors
Description EVAL BOARD FOR ACS780XLR / ACS780xLR - Current Sensor Sensor Evaluation Board
Datasheet
ASEK780KLR-150B-T-DK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Allegro MicroSystems
Package Bulk
Sensor Type Current Sensor
Sensing Range 150A
Interface Analog
Sensitivity 13.33mV/A
Voltage - Supply 4.5V
Supplied Contents Board(s)
Utilized IC / Part ACS780xLR
Base Product Number ASEK78
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1347082-ASEK780KLR-150B-T-DK
Ultra Librarian 3D Model Ultra Librarian ASEK780KLR-150B-T-DK CAD Model

Description

The ASEK780KLR-150B-T-DK is a current sensor evaluation board designed for use with the ACS780xLR sensor type.

  • Manufacturer: Allegro MicroSystems
  • Interface: Analog
  • Sensitivity: 13.33mV/A
  • Sensing Range: 150A
  • Supplied With: Sensor
  • Voltage Supply: 4.5V
  • Package: Bulk
  • Standard Package: 1
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • HTSUS: 8543.70.9860
