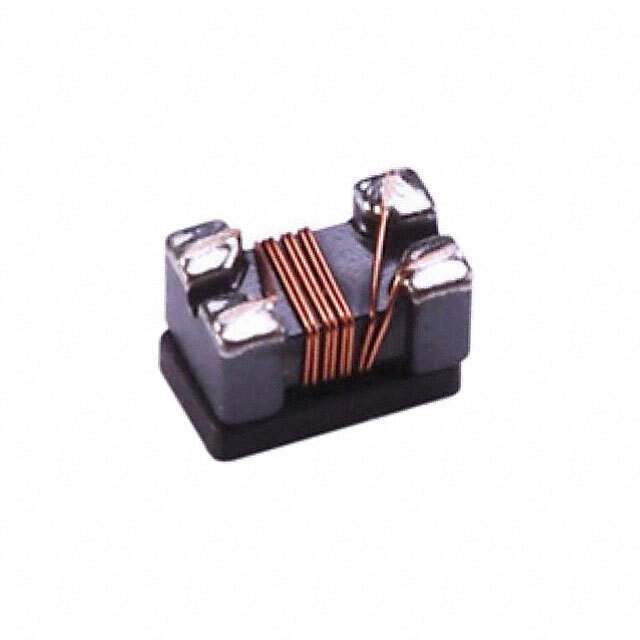

ACM-31-222M-T Abracon LLC
Same model may have multiple batches, images only for reference.

ACM-31-222M-T

Part No ACM-31-222M-T
Manufacturer Abracon LLC
Catalog Common Mode Chokes
Description CMC 200MA 2LN 2.2K OHM SMD
Datasheet
ACM-31-222M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308507-ACM-31-222M-T
Category Filters >Common Mode Chokes
Manufacturer Abracon LLC
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 2.2 kOhms @ 100 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 1.2Ohm
Voltage Rating DC 50V
Ultra Librarian 3D Model Ultra Librarian ACM-31-222M-T CAD Model

Description

  • Small size with ferrite base
  • Two line type wire wound
  • High common-mode impedance at noise band and low differential-mode impedance at signal band
  • Suitable for high-speed signal.
