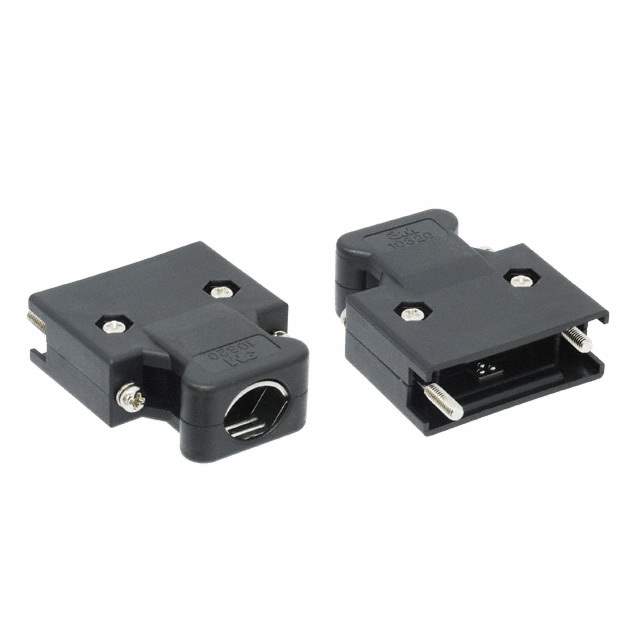

10320-52A0-008 Real Image
Same model may have multiple batches, images only for reference.

10320-52A0-008

Part No 10320-52A0-008
Manufacturer 3M
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 20P 180DEG 1=1PC / 20 Position Two Piece Backshell Connector Black 180° Unshielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Backshells, Hoods
Manufacturer 3M
Packaging Box
Accessory Type Two Piece Backshell
Number of Positions 20
Cable Type Round
Cable Exit 180°
Shielding Unshielded
Material Polyester, Glass Filled
Hardware Assembly Hardware, Strain Relief
Features Mating Screws M2.6
Color Black
Base Product Number 10320
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number -10320-52A0-008,7000007383,JE150180360,1032052A0008,90169008950,4901690089503
Standard Package 100
Win Source Part Number 1333219-10320-52A0-008
Ultra Librarian 3D Model Ultra Librarian 10320-52A0-008 CAD Model

Description

The 3M 1333219-10320-52A0-008 is a two-piece backshell designed for use with D-sub connectors.

  • Positions: 20
  • Mating Screws: M2.6
  • Color: Black
  • Material: Polyester, Glass-Filled
  • Cable Exit: 180°
  • Includes: Assembly Hardware, Strain Relief
  • Supplied In: Box
  • Standard Package: 100
  • RoHS Compliant: Yes
  • ECCN: EAR99.90.8180
