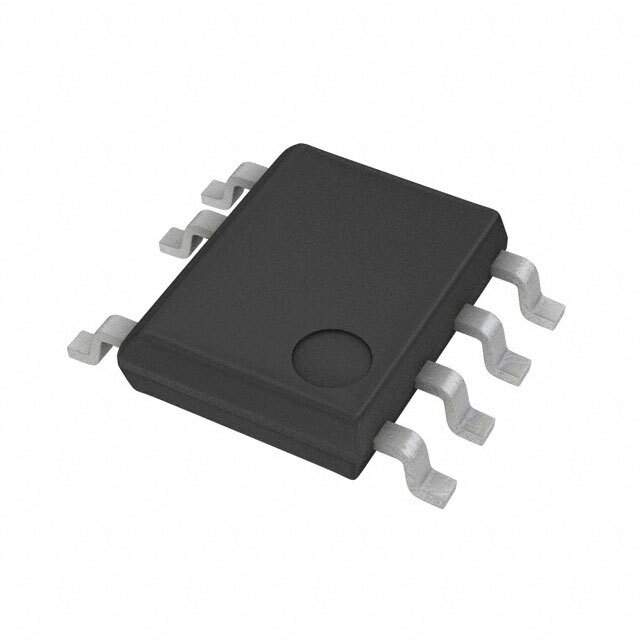

VO2223A-X007T Real Image
Same model may have multiple batches, images only for reference.

VO2223A-X007T

Part No VO2223A-X007T
Manufacturer Vishay
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLTR 5.3KV PWR TRIAC 8SMD / Optoisolator Triac, Power Output 5300Vrms 1 Channel 8-SMD
Datasheet
VO2223A-X007T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Triac, SCR Output
Mfr Vishay Semiconductor Opto Division
Package Tape & Reel
Output Type Triac, Power
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 5300Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 210V/µs (Typ)
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 1 A
Current - Hold (Ih) 25mA
Voltage - Forward (Vf) (Typ) 1.4V (Max)
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 8-SMD (7 Leads), Gull Wing
Supplier Device Package 8-SMD
Approval Agency cUR, UR
Base Product Number VO2223
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names VO2223A-X007TTR,VO2223A-X007T-ND,VO2223A-X007TDKR,VO2223A-X007TCT
Standard Package 1,000
Win Source Part Number 1183894-VO2223A-X007T
Ultra Librarian 3D Model Ultra Librarian VO2223A-X007T CAD Model

Description

The VO2223A-X007T is an optoisolator with triac and SCR output manufactured by Vishay Semiconductor Opto Division.

  • Application: Isolator
  • Voltage Isolation: 5300Vrms
  • Maximum Current On State: 1A
  • Mounting: 8-SMD (7 leads), gull wing
  • Temperature Range: -40°C to 85°C
  • Approvals: cUR and UR
