Same model may have multiple batches, images only for reference.

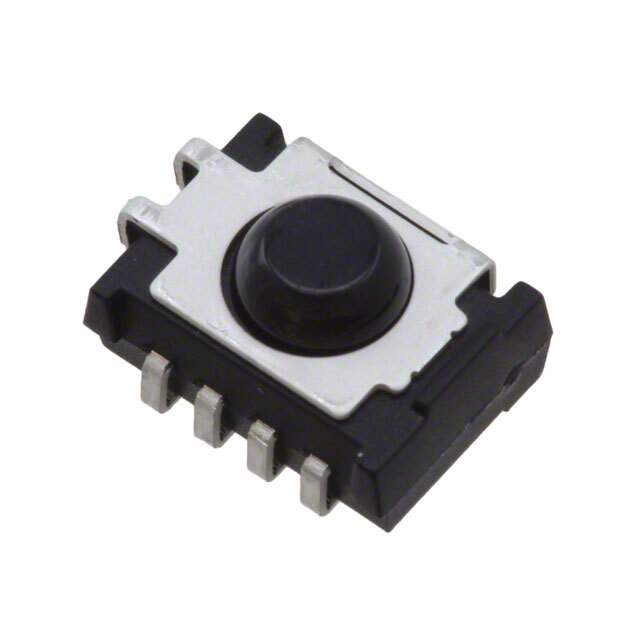

TSOP6236TT Real Image
Same model may have multiple batches, images only for reference.

TSOP6236TT

Part No TSOP6236TT
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description SMD PH.MODULE 36KHZ T.VIEW
Datasheet
TSOP6236TT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Reel - TR
Status Active
Sensing Distance 40m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 700μA
Orientation Side or Top View
Mounting SMD (SMT)
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 132721-TSOP6236TT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSOP6236TT CAD Model

Description

The Vishay TSOP6236TT is a surface-mount infrared sensor designed for sensing distances up to 40m.

  • Carrier Frequency: 36.0kHz
  • Operating Supply Voltage: 2.5V to 5.5V
  • Operating Supply Current: 700μA
  • Orientation: side or top view orientation
  • Package: packaged on a reel
  • Applications: sensors and transducers applications
  • Status: currently active in the market
  • Supply and demand: limited
