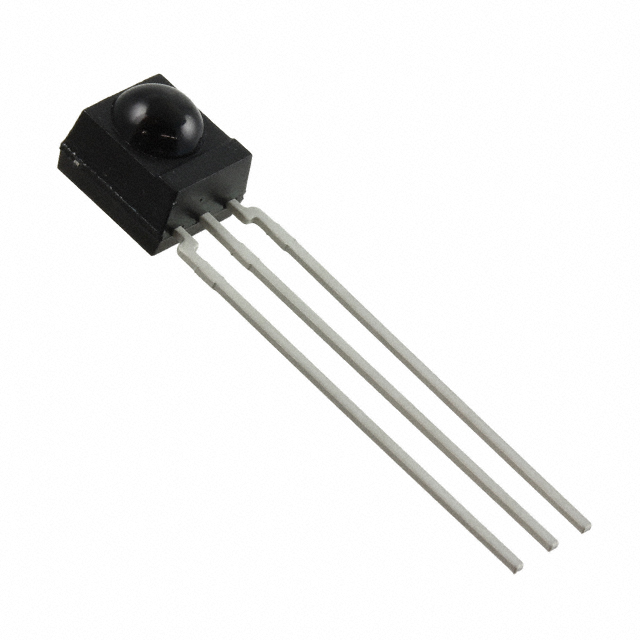

TSOP2138YAZ Vishay
Same model may have multiple batches, images only for reference.

TSOP2138YAZ

Part No TSOP2138YAZ
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MODULE 38KHZ
Datasheet
TSOP2138YAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors,Transducers
Family Optical Sensors - Photo Detectors - Remote Receiver
Manufacturer Vishay-Semiconductor-Opto-Division
Sensing Distance 35m
B.P.F. Center Frequency 38.0kHz
Operating Supply Voltage 4.5 V ~ 5.5 V
Current - Supply 1.1mA
Orientation Side View
Mounting Style Through Hole
Operating Temperature Range -25°C ~ 85°C (TA)
Win Source Part Number 004592-TSOP2138YAZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSOP2138YAZ CAD Model

Description

The Vishay-Semiconductor-Opto-Division TSOP2138YAZ is an infrared remote control receiver that is widely used in various electronic devices such as televisions, DVD players, and set-top boxes.

  • Sensing Distance: 35m
  • Operating Temperature Range: -25°C to 85°C
  • B.P.F. Center Frequency: 38.0kHz
  • Operating Supply Voltage: 4.5V to 5.5V
