Same model may have multiple batches, images only for reference.

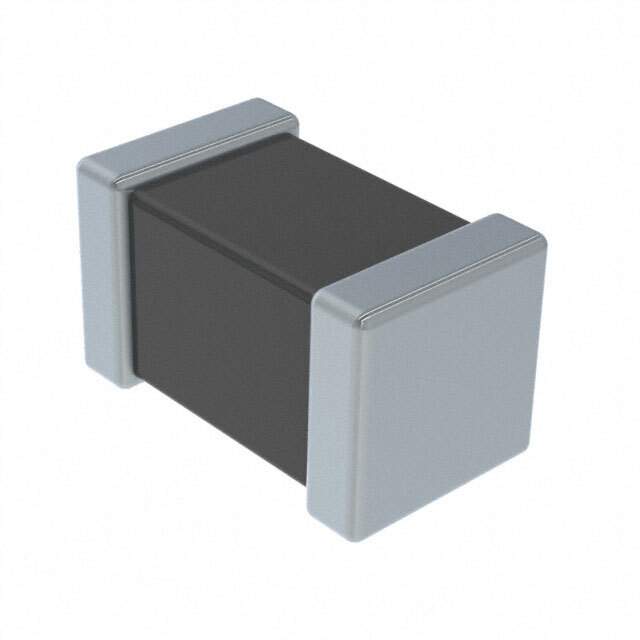

T59EE226M063C0100 Real Image
Same model may have multiple batches, images only for reference.

T59EE226M063C0100

Part No T59EE226M063C0100
Manufacturer Vishay
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 22UF 63V 2917 / 22 µF Molded Tantalum Polymer Capacitor 63 V 2917 (7343 Metric) 100mOhm @ 100kHz
Datasheet
T59EE226M063C0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum - Polymer Capacitors
Mfr Vishay Polytech
Series vPolyTan™ T59
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 63 V
Type Molded
ESR (Equivalent Series Resistance) 100mOhm @ 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.169" (4.30mm)
Manufacturer Size Code EE
Features General Purpose
Standard Package 400
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 1341084-T59EE226M063C0100
Ultra Librarian 3D Model Ultra Librarian T59EE226M063C0100 CAD Model

Description

The 1341084-T59EE226M063C0100 is a tantalum polymer capacitor from Vishay Polytech.

  • Capacitance: 22 µF
  • Tolerance: ±20%
  • Voltage Rated: 63V
  • ESR (Equivalent Series Resistance): 100mOhm @ 100kHz
  • Package Type: tape & reel
  • Size / Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height (Seated): 0.169" (4.30mm)
  • Mounting Type: surface mount
  • Lifetime @ 105°C: 2000 Hrs
  • Operating Temperature: -55°C ~ 105°C
