The SQS415ENW-T1_GE3 is an N-Channel MOSFET manufactured by Vishay. It's designed for a variety of power management applications, offering efficient switching and low on-resistance. This MOSFET is part of Vishay's E series, known for enhanced performance and robust design.

Applications

• Load Switching
• DC-DC Conversion
• Power Management in Portable Devices
• Motor Control
• Backlighting

Features

• Low On-Resistance: Minimizes power losses and improves efficiency.
• Fast Switching Speed: Enables high-frequency operation.
• Logic Level Gate Drive: Allows direct drive from microcontrollers and other logic devices.
• TrenchFET® Power MOSFET Technology: Provides superior performance and efficiency.
• 100% Rg Tested: Ensures consistent gate charge characteristics.
• Halogen-free: Compliant with environmental regulations.

Benefits

• High Efficiency: Reduces power consumption and heat generation.
• Compact Design: Enables smaller and more efficient power supply designs.
• Simplified Drive Circuitry: Reduces the number of external components required.
• Improved Thermal Performance: Enhances reliability and stability.

Technical Specifications

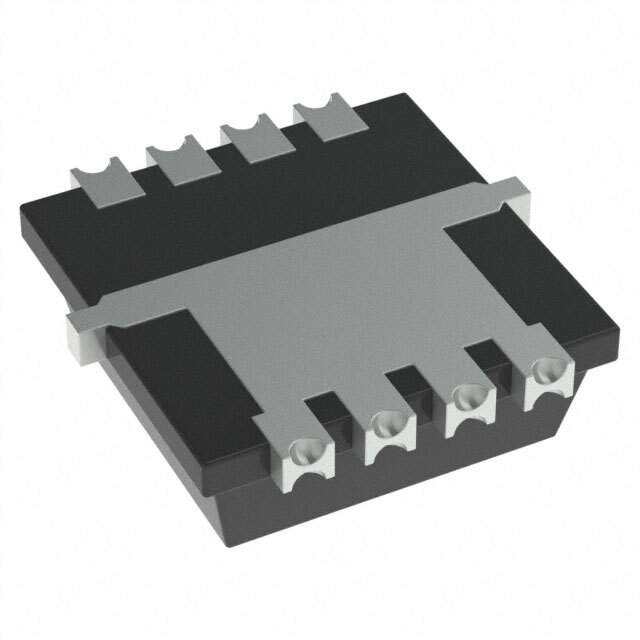

The SQS415ENW-T1_GE3 has a drain-source voltage (Vds) rating of 30V and a continuous drain current (Id) rating of typically 10A. The on-resistance (Rds(on)) is typically 13 mΩ at Vgs = 10V. It is available in a PowerPAK® SO-8 single package. The operating temperature range is from -55°C to +150°C. Proper thermal management is essential for optimal performance. Consult the Vishay datasheet for absolute maximum ratings and detailed electrical characteristics.

Note: Refer to the official Vishay datasheet for complete and detailed specifications.
