Same model may have multiple batches, images only for reference.

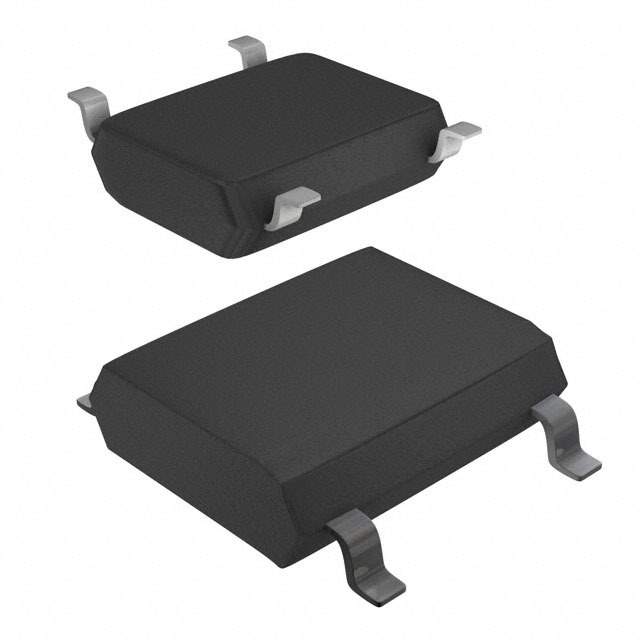

MBL110S-M3/I Real Image
Same model may have multiple batches, images only for reference.

MBL110S-M3/I

Part No MBL110S-M3/I
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Diode Rectifier Bridge Single 1KV 1A 4-Pin Case MBLS T/R / RECT BRIDGE 1A 1000V MBLS
Datasheet
MBL110S-M3/I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Reel package
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) @ If 950mV @ 400mA
Current - Reverse Leakage @ Vr 5μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 4-SMD, Gull Wing
Manufacturer Package 4-SMD
Win Source Part Number 787488-MBL110S-M3/I
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Family Name MBL110S
Introduction Date May 11, 2013
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MBL110S-M3/I CAD Model

Description

The MBL110S-M3/I is a single-phase diode from Vishay Semiconductor Diodes Division.

  • Voltage Forward (Vf) (maximum) @ If: 950mV @ 400mA
  • Current Reverse Leakage @ Vr: 5μA @ 1000V
  • Package: 4-SMD, gull wing
  • Quantity per Package: 4k pcs
  • Series: MBL110S
  • Manufacturer: Vishay Semiconductor Diodes Division
