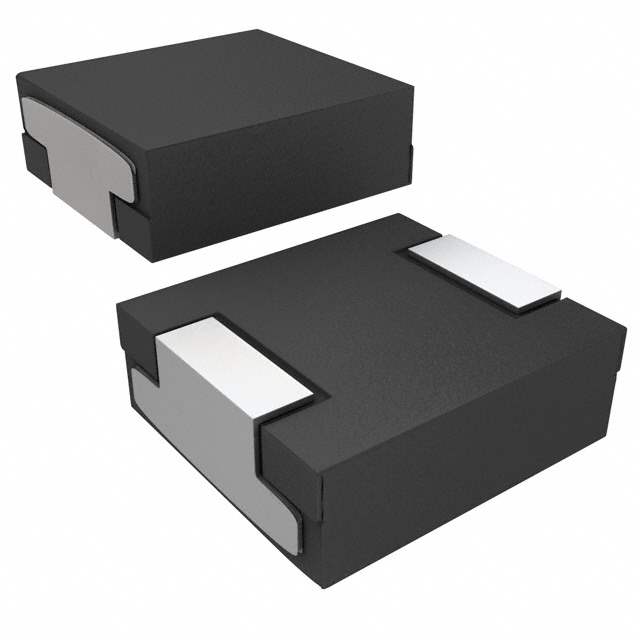

IHLP4040DZERR56M01 Real Image
Same model may have multiple batches, images only for reference.

IHLP4040DZERR56M01

Part No IHLP4040DZERR56M01
Manufacturer Vishay
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 0.56uH 20% 100KHz Powdered Iron 27.5A 0.00195Ohm DCR 4040 T/R / FIXED IND 560NH 27.5A 1.8 MOHM
Datasheet
IHLP4040DZERR56M01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Molded
Inductance 560nH
Tolerance ±20%
Current Rating 27.5A
Current - Saturation 49A
DC Resistance (DCR) 1.8 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 113811-IHLP4040DZERR56M01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 500
Family Name IHLP-4040DZ-01
Introduction Date October 17, 2006
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZERR56M01 CAD Model

Description

The Vishay IHLP-4040DZ-01 is a molded inductor with a current rating of 27.5A and an inductance of 560nH.

  • Height: 0.157" (4.00mm)
  • Tolerance: ±20%
  • Saturation Current: 49A
  • Frequency Test: 100kHz
  • DC Resistance (DCR): 1.8 mOhm Max
  • Temperature Range: -55°C to 125°C
  • Packaging: reel - TR
  • Popularity: common-used part with high popularity
  • Supply and Demand Status: limited
  • Estimated EOL Date: 2027
  • Halogen-Free Compliant: Yes
