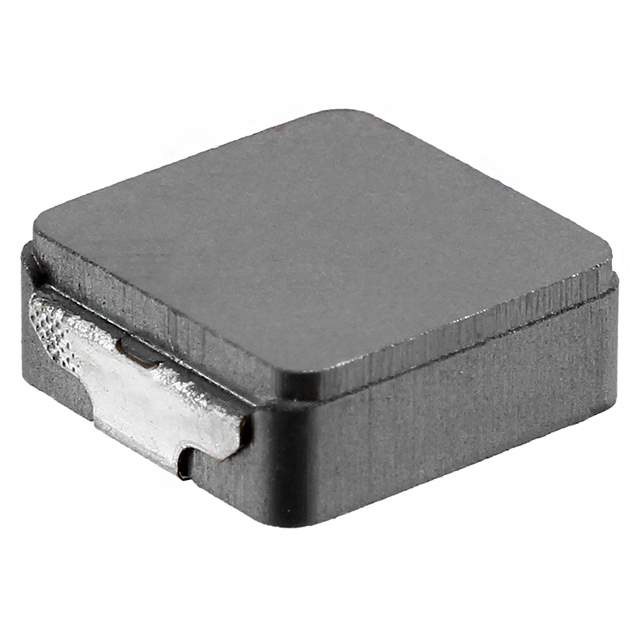

IHLP4040DZER6R8M5A Real Image
Same model may have multiple batches, images only for reference.

IHLP4040DZER6R8M5A

Part No IHLP4040DZER6R8M5A
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 6.8UH 8A 22.36MOHM SMD / 6.8 µH Shielded Molded Inductor 8 A 22.36mOhm Max Nonstandard
Datasheet
IHLP4040DZER6R8M5A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-4040DZ-5A
Package Tape & Reel
Type Molded
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 9A
Shielding Shielded
DC Resistance (DCR) 22.36mOhm Max
Frequency - Self Resonant 16.3MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package 4040
Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 541-IHLP4040DZER6R8M5ATR,541-IHLP4040DZER6R8M5ACT,541-IHLP4040DZER6R8M5ADKR,IHLP4040DZER6R8M5A-ND
Standard Package 500
Win Source Part Number 1178105-IHLP4040DZER6R8M5A
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER6R8M5A CAD Model

Description

The IHLP-4040DZ-5A series inductor is a high-performance molded component from Vishay Dale.

  • Series: IHLP-4040DZ-5A
  • Component Type: Inductor
  • Design: Shielded
  • Manufacturer: Vishay Dale
  • Inductance: 6.8 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 22.36mOhm max
  • Current Rating: 8 A
  • Operating Temperature: -55°C to 125°C
  • AEC-Q200 Rated: Yes
  • Packaging: Tape and Reel
  • Frequency Self-Resonant: 16.3MHz
  • Package Dimensions: 0.425" L x 0.400" W (10.80mm x 10.16mm)
  • Package/Case: Nonstandard
  • Q @ Freq: Unknown
