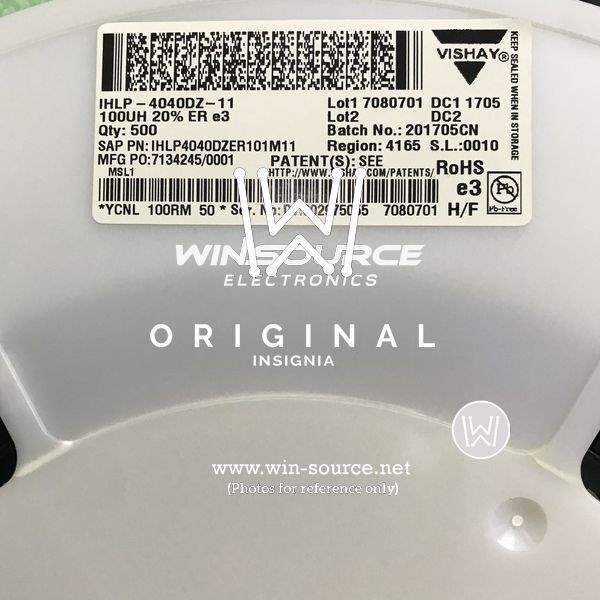

IHLP4040DZER101M11 Real Image IHLP4040DZER101M11 label picture
Same model may have multiple batches, images only for reference.
IHLP4040DZER101M11 Real Image IHLP4040DZER101M11 label picture
IHLP4040DZER101M11 Real Image IHLP4040DZER101M11 label picture
Same model may have multiple batches, images only for reference.

IHLP4040DZER101M11

Part No IHLP4040DZER101M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 100UH 2.5A 270 MOHM / Inductor Power Shielded Wirewound 100uH 20% 100KHz Powdered Iron 2.5A 0.27Ohm DCR 4040 T/R
Datasheet
IHLP4040DZER101M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Molded
Inductance 100μH
Tolerance ±20%
Current Rating 2.5A
Current - Saturation 2.25A
DC Resistance (DCR) 270 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 108859-IHLP4040DZER101M11
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name IHLP-4040DZ-11
Introduction Date October 17, 2006
ECCN EAR99
Country of Origin China, Israel, United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER101M11 CAD Model

Description

The Vishay IHLP4040DZER101M11 is an inductor/coil/choke that has a family name of IHLP-4040DZ-11.

  • Current Rating: 2.5A
  • Inductance: 100μH
  • Height-Seated (max): 0.157" (4.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 270 mOhm Max
  • Temperature Range: -55°C to 125°C
  • Packaging: Reel-TR
  • Mounting: SMD (SMT) technology
  • Alternative Parts: TL4040SG11-101MB, ASPI-1207S-101M-T, ASPI-0810T-101M-T, and ASPI-1205S-101M-T
  • Manufacturer: Vishay
  • Win Source Part Number: 108859-IHLP4040DZER101M11
  • Introduction Date: October 17, 2006
  • ECCN: EAR99
  • Halogen-Free: Yes
  • Supply and Demand Status: Limited
