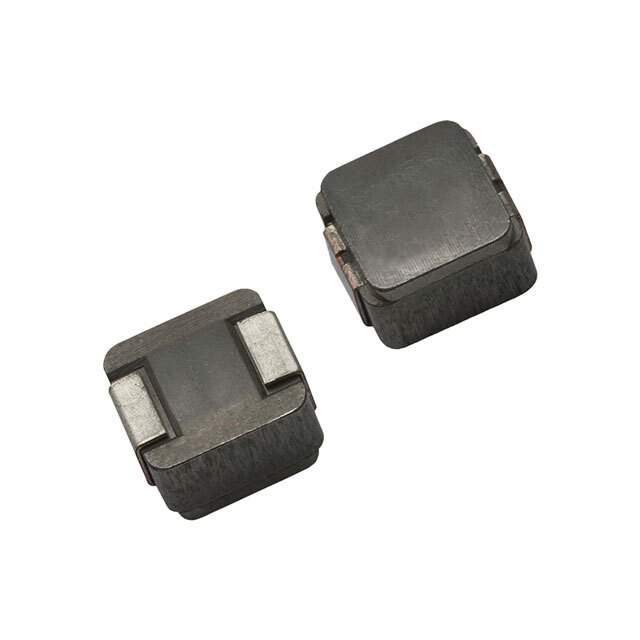

IHLP2020CZER4R7MA1 Real Image
Same model may have multiple batches, images only for reference.

IHLP2020CZER4R7MA1

Part No IHLP2020CZER4R7MA1
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-2020CZ-A1 4.7 20% ER E3 / 4.7 µH Shielded Inductor 3.5 A 77.5mOhm Max Nonstandard
Datasheet
IHLP2020CZER4R7MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-2020CZ-A1
Package Tape & Reel
Material - Core Metal Composite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 8.2A
Shielding Shielded
DC Resistance (DCR) 77.5mOhm Max
Frequency - Self Resonant 25MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP2020CZER4R7MA1DKR,541-IHLP2020CZER4R7MA1TR,541-IHLP2020CZER4R7MA1CT
Standard Package 2,000
Win Source Part Number 1064786-IHLP2020CZER4R7MA1
Ultra Librarian 3D Model Ultra Librarian IHLP2020CZER4R7MA1 CAD Model

Description

The IHLP2020CZER4R7MA1 is a fixed inductor from Vishay Dale.

  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Shielded: Yes
  • Height: 0.118 inches
  • Mounting: surface mountable
  • Package: tape and reel
  • Series: IHLP-2020CZ-A1
  • AEC-Q200: rated part
  • Supply and Demand Status: balanced
