Same model may have multiple batches, images only for reference.

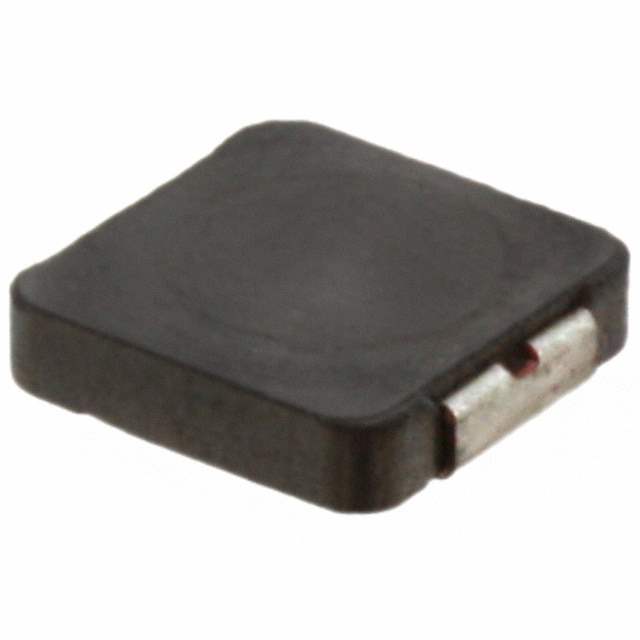

IHLP2020ABER4R7M01 Real Image
Same model may have multiple batches, images only for reference.

IHLP2020ABER4R7M01

Part No IHLP2020ABER4R7M01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.2A 168 MOHM
Datasheet
IHLP2020ABER4R7M01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Molded
Inductance 4.7μH
Tolerance ±20%
Current Rating 2.2A
Current - Saturation 4.4A
DC Resistance (DCR) 168 mOhm Max
Frequency - Self Resonant 30MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 118481-IHLP2020ABER4R7M01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name IHLP-2020AB-01
Introduction Date September 01, 2012
ECCN EAR99
Country of Origin China, Israel, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian IHLP2020ABER4R7M01 CAD Model

Description

This molded electronic component is manufactured by Vishay.

  • Current Rating: 2.2A
  • Inductance: 4.7μH
  • Height when seated: 0.047 inches or 1.20mm
  • Mounting: Surface mount device (SMD) or surface mount technology (SMT)
  • Tolerance: ±20%
  • Current Saturation: 4.4A
  • Self-Resonant Frequency: 30MHz
  • Test Frequency: 100kHz
  • Family Name: IHLP-2020AB-01
  • Category: Inductors, Coils, Chokes
  • DC Resistance (DCR): 168 mOhm Max
  • Product Status: Active
  • Temperature Range: -55°C to 125°C
  • Country of Origin: China, Israel, United States of America
  • Estimated End-of-Life Date: 2026
  • Halogen-Free Compliant: Yes
  • Supply and Demand Status: In balance
  • Package: 4k pcs
