Same model may have multiple batches, images only for reference.

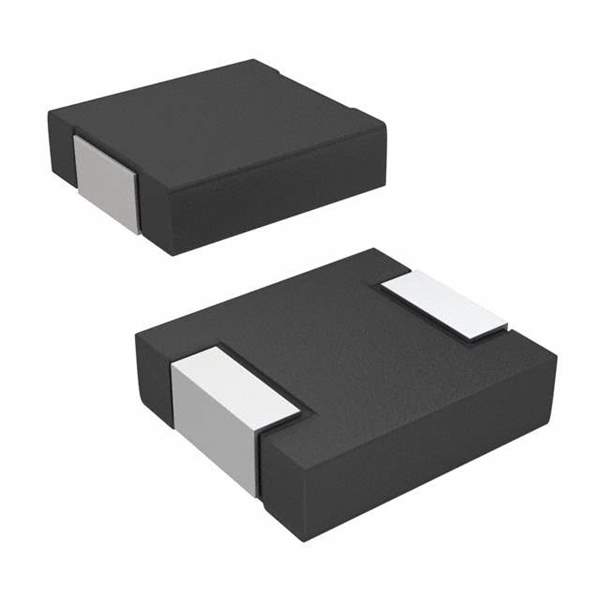

IHLP1616BZERR47M01 Real Image
Same model may have multiple batches, images only for reference.

IHLP1616BZERR47M01

Part No IHLP1616BZERR47M01
Manufacturer Vishay
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 0.47uH 20% 100KHz Powdered Iron 5.6A 0.018Ohm DCR 1616 T/R / FIXED IND 470NH 5.6A 18 MOHM SMD
Datasheet
IHLP1616BZERR47M01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Molded
Inductance 470nH
Tolerance ±20%
Current Rating 5.6A
Current - Saturation 11.5A
DC Resistance (DCR) 18 mOhm Max
Frequency - Self Resonant 97MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 017152-IHLP1616BZERR47M01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 4k pcs
Family Name IHLP-1616BZ-01
Introduction Date November 16, 2006
ECCN EAR99
Country of Origin China, Israel, United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IHLP1616BZERR47M01 CAD Model

Description

The Vishay IHLP1616BZERR47M01 is a molded inductor that has a current rating of 5.6A and an inductance of 470nH.

  • Current Rating: 5.6A
  • Inductance: 470nH
  • Maximum Height: 0.079" (2.00mm)
  • Package: SMD
  • Tolerance: ±20%
  • Saturation Current: 11.5A
  • Self-Resonant Frequency: 97MHz
  • Applications: Inductor, coil, and choke
  • Operating Temperature: -55°C to 125°C
  • Package: 4k pcs
