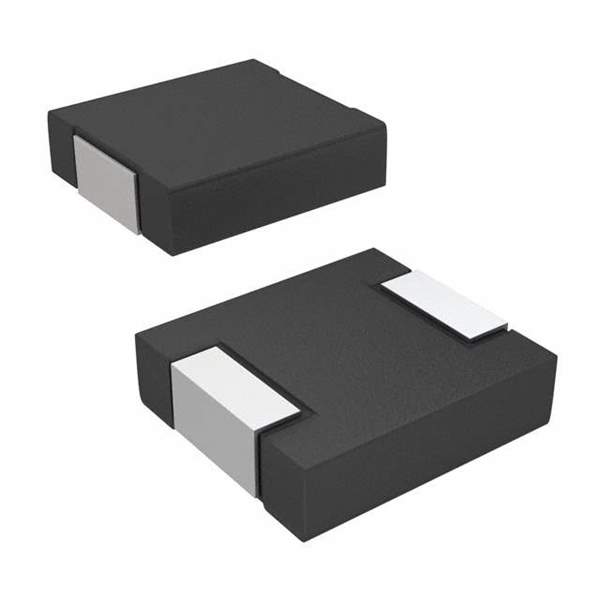

IHLP1616BZERR22M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1616BZERR22M11

Part No IHLP1616BZERR22M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 220NH 9A 7 MOHM SMD
Datasheet
IHLP1616BZERR22M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Molded
Inductance 220nH
Tolerance ±20%
Current Rating 9A
Current - Saturation 9A
DC Resistance (DCR) 7 mOhm Max
Frequency - Self Resonant 158MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 205120-IHLP1616BZERR22M11
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IHLP1616BZERR22M11 CAD Model

Description

The Vishay IHLP1616BZERR22M11 is a molded inductor that comes in a reel-TR package and is mounted SMD.

  • Current Rating: 9A
  • Inductance: 220nH
  • DC Resistance: 7 mOhm max
  • Tolerance: ±20%
  • Suitable for: Inductors, coils, and chokes
  • Frequency Self-Resonant: 158MHz
  • Operating Temperature: -55°C to 125°C
  • Supply and Demand Status: Balanced
