Same model may have multiple batches, images only for reference.

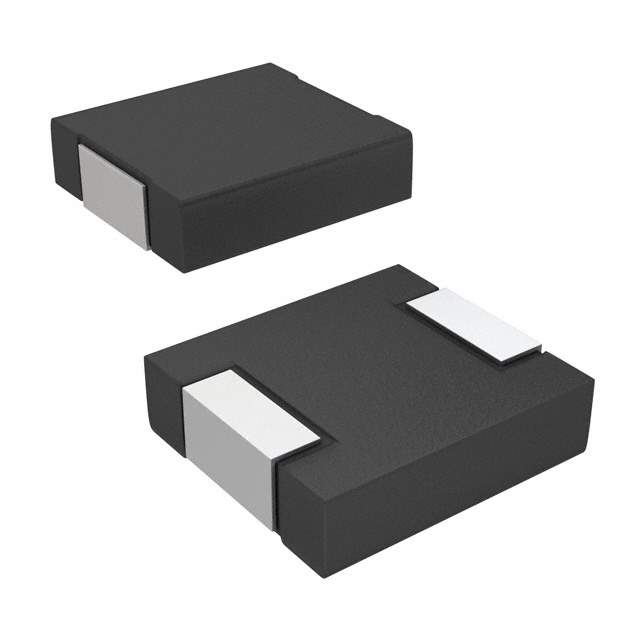

IHLP1616ABER1R2M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1616ABER1R2M11

Part No IHLP1616ABER1R2M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 1.2UH 3.75A 58.5 MOHM / 1.2 µH Shielded Molded Inductor 3.75 A 58.5mOhm Max Nonstandard
Datasheet
IHLP1616ABER1R2M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Vishay Dale
Packaging Reel - TR
Type Molded
Inductance 1.2 µH
Tolerance ±20%
Current Rating (Amps) 3.75 A
Current - Saturation (Isat) 3.75A
Shielding Shielded
DC Resistance (DCR) 58.5mOhm Max
Frequency - Self Resonant 62MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.047" (1.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 541-IHLP1616ABER1R2M11DKR,IHLP1616ABER1R2M11-ND,541-IHLP1616ABER1R2M11TR,541-IHLP1616ABER1R2M11CT
Standard Package 4,000
Win Source Part Number 1327448-IHLP1616ABER1R2M11
Ultra Librarian 3D Model Ultra Librarian IHLP1616ABER1R2M11 CAD Model

Description

The IHLP1616ABER1R2M11 is a fixed inductor from Vishay Dale.

  • Packaging: Reel - TR
  • Shielding: Mold Shielded
  • Size/Dimension: 0.175" L x 0.160" W (4.45mm x 4.06mm)
  • Inductance: 1.2 µH
  • Maximum Seated Height: 0.047" (1.20mm)
  • Tolerance: ±20%
