Same model may have multiple batches, images only for reference.

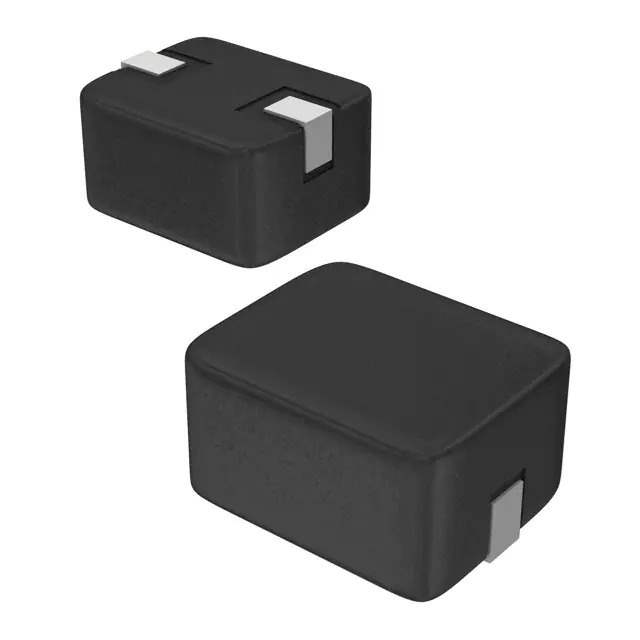

IHLP1212BZER3R3M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1212BZER3R3M11

Part No IHLP1212BZER3R3M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 3.3UH 2.7A 61 MOHM SMD
Datasheet
IHLP1212BZER3R3M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Vishay
Series IHLP-1212BZ-11
Package Tape & Reel
Product Status Active
Type Molded
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 3.3A
Shielding Shielded
DC Resistance (DCR) 61mOhm Max
Frequency - Self Resonant 45MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 848871-IHLP1212BZER3R3M11
Ultra Librarian 3D Model Ultra Librarian IHLP1212BZER3R3M11 CAD Model

Description

The IHLP1212BZER3R3M11 is a fixed inductor designed for surface mount applications.

  • Series: IHLP-1212BZ-11
  • Type: Molded, Shielded
  • Size: 0.144" L x 0.118" W (3.65mm x 3.00mm)
  • Seated Height (Max): 0.079" (2.00mm)
  • Inductance: 3.3 µH
  • Tolerance: ±20%
  • Package: Nonstandard
  • DC Resistance: 61mOhm max
  • Current Rating: 2.7A
  • Temperature Range: -55°C to 125°C
  • Manufacturer: Vishay
  • Status: Active
