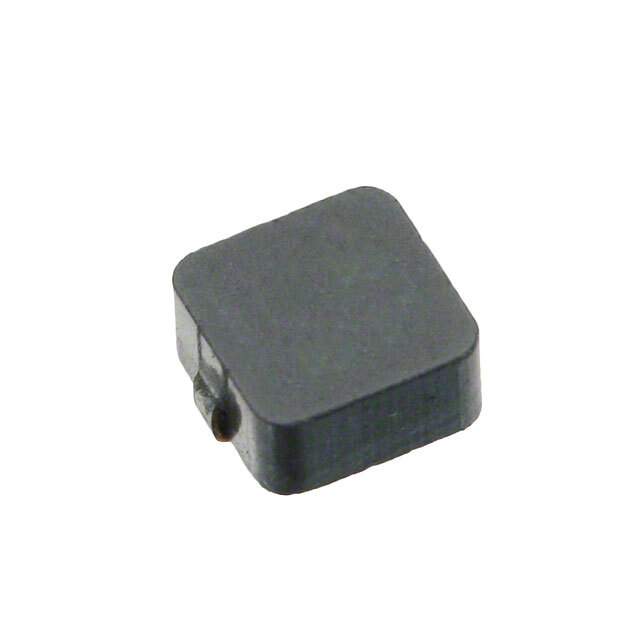

IHLP1212ABERR47M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1212ABERR47M11

Part No IHLP1212ABERR47M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 470NH 6.4A 19.5 MOHM / Inductor Power Shielded Wirewound 0.47uH 20% 100KHz Powdered Iron 6.4A 0.0195Ohm DCR 1212 T/R
Datasheet
IHLP1212ABERR47M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay Dale
Series IHLP-1212AB-11
Packaging Reel package
Type Molded
Inductance 470nH
Tolerance ±20%
Current Rating 6.4A
Current - Saturation 7A
Shielding Shielded
DC Resistance (DCR) 19.5 mOhm Max
Frequency - Self Resonant 140MHz
Operating Temperature Range -55°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 776701-IHLP1212ABERR47M11
Popularity Medium
Supply and Demand Status Limited
Family Name IHLP-1212AB-11
Introduction Date December 06, 2010
ECCN EAR99
Country of Origin China, Israel, United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IHLP1212ABERR47M11 CAD Model

Description

The Vishay Dale IHLP1212ABERR47M11 is a molded nonstandard inductor with a current rating of 6.4A and a shielding of shielded.

  • Inductance: 470nH
