Same model may have multiple batches, images only for reference.

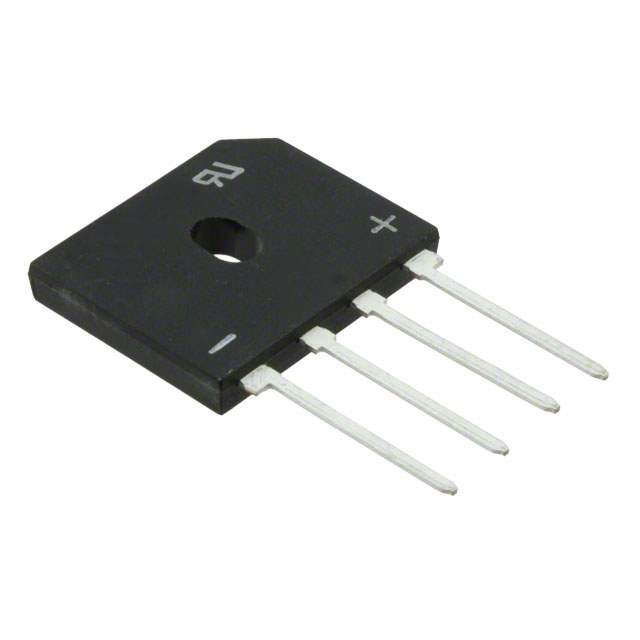

G3SBA80-M3/51 Real Image
Same model may have multiple batches, images only for reference.

G3SBA80-M3/51

Part No G3SBA80-M3/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE 1PH 4A 800V / Diode Rectifier Bridge Single 800V 2.3A 4-Pin Case GBU Tray
Datasheet
G3SBA80-M3/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tray
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 2.3A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 2A
Current - Reverse Leakage @ Vr 5μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBU
Manufacturer Package GBU
Win Source Part Number 774869-G3SBA80-M3/51
Popularity Medium
Supply and Demand Status Limited
Family Name G3SBA80
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian G3SBA80-M3/51 CAD Model

Description

The Vishay Semiconductor Diodes Division G3SBA80-M3/51 is a single-phase diode that is perfect for use in a variety of electronic applications.

  • Voltage Rating: 800V
  • Current Rating: 2.3A
  • Technology: Standard
  • Average Rectified Current: 2.3A
  • Reverse Leakage Current: 5μA @ 800V
  • Mounting Style: Through-hole
  • Package: 4-SIP, GBU
  • Voltage Peak Reverse: 800V
  • Voltage Forward: 1V @ 2A
