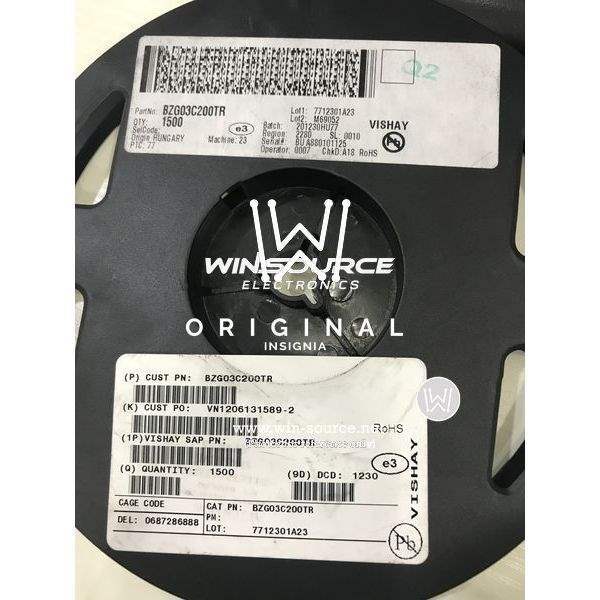

The BZG03C200 is a transient voltage suppressor (TVS) diode manufactured by Vishay. It's designed to protect sensitive electronic equipment from voltage surges and transients, particularly those arising from electrostatic discharge (ESD) or inductive load switching. The '200' in the part number indicates a 200V reverse standoff voltage. Despite being listed as END-OF-LIFE, it was previously utilized in various protection circuits.

Applications:

• Input/Output (I/O) port protection
• Data line protection
• Power supply protection
• Telecommunication equipment
• Consumer electronics

Features:

• Unidirectional TVS diode
• High surge current capability
• Fast response time
• Low clamping voltage
• Glass passivated junction

Benefits:

• Effective protection against voltage transients
• Improved system reliability
• Reduced component failures due to overvoltage events
• Simplified PCB layout due to small package size (typically DO-214AC)
• Enhanced product lifespan

Additional Details:

The BZG03C200's fast response time is crucial for quickly clamping transient voltages before they can damage downstream circuitry. The high surge current rating signifies its ability to absorb large amounts of energy from transient events. The clamping voltage is kept low to minimize stress on protected components. The glass passivated junction enhances the device's overall reliability. Although now an end-of-life product, datasheets containing parameters such as peak pulse power, clamping voltage characteristics, and thermal resistance can likely be found on the Vishay website or through electronic component distributors. Engineers should consider alternative TVS diodes for new designs.
