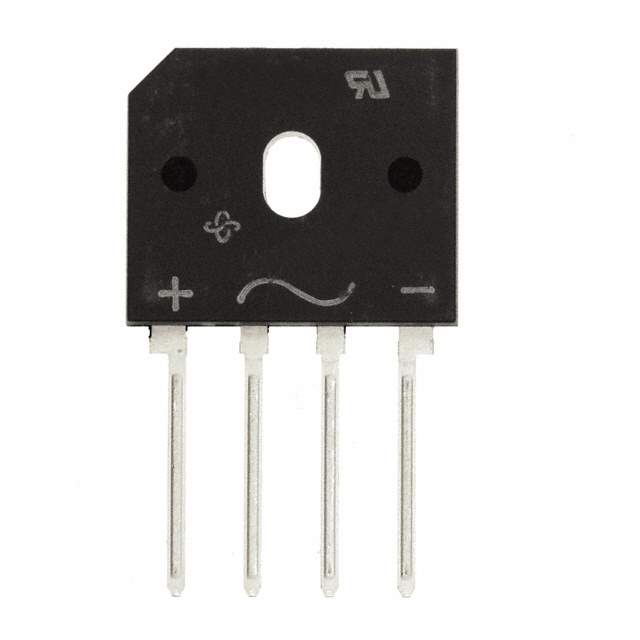

BU1010-M3/45 Real Image
Same model may have multiple batches, images only for reference.

BU1010-M3/45

Part No BU1010-M3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description Bridge Rectifiers
Datasheet
BU1010-M3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 1.05V @ 5A
Current - Reverse Leakage @ Vr 5μA @ 1000V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, BU
Manufacturer Package isoCINK+ BU
Win Source Part Number 1155648-BU1010-M3/45
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 800
Family Name BU1010
Introduction Date March 18, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian BU1010-M3/45 CAD Model

Description

The 1155648-BU1010-M3/45 is a single-phase diode from Vishay Semiconductor Diodes Division.

  • Maximum Peak Reverse Voltage: 1000 V
  • Average Rectified Current: 10A
  • Mounting Style: Through-hole
  • Package: 4-SIP, BU
  • Operating Junction Temperature Range: -55°C to 150°C
  • Packaging: Tube
  • Pieces per Package: 800
  • Type: Standard diode
  • Applications: Rectifier circuits and power supplies
