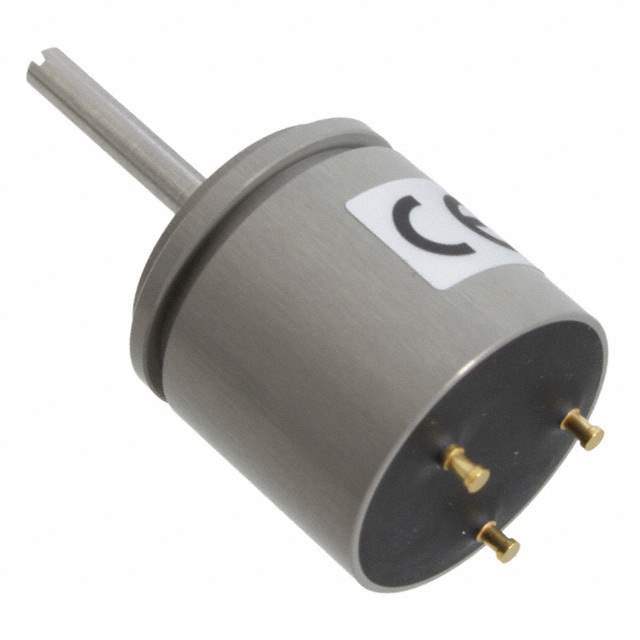

34THES1BTA2S22 Real Image
Same model may have multiple batches, images only for reference.

34THES1BTA2S22

Part No 34THES1BTA2S22
Manufacturer Vishay
Catalog Position Sensors - Angle, Linear Position Measuring
Description SENSOR ROTARY 3600DEG SLD TURRET / Hall Effect Sensor Rotary Position Slotted Shaft Solder Turret
Datasheet
34THES1BTA2S22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Position Sensors - Angle, Linear Position Measuring
Mfr Vishay Spectrol
Package Bulk
For Measuring Rotary Position
Technology Hall Effect
Rotation Angle - Electrical, Mechanical 0° ~ 3600°, Continuous
Output Analog Voltage
Output Signal Clockwise Increase
Actuator Type Slotted Shaft
Linearity ±0.5%
Voltage - Supply 5V
Mounting Type Panel Mount
Termination Style Solder Turret
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Other Names 716-1056
Standard Package 1
Win Source Part Number 1057769-34THES1BTA2S22
Ultra Librarian 3D Model Ultra Librarian 34THES1BTA2S22 CAD Model

Description

The 34THES1BTA2S22 is a rotary position sensor designed for use in angle and linear position measuring applications. It is manufactured by Vishay Spectrol.

  • Application: Angle and linear position measuring
  • Output Signal: Clock-wise increase
  • Linear Range: 0 to 3600 degrees
  • Linearity: ±0.5%
  • Voltage Supply: 5V
  • Temperature Range: -40°C to 85°C
  • Actuator Type: Slotted shaft
  • Termination Style: Solder turret
  • Mounting: Panel mountable
  • Resistance Tolerance: -
  • Measuring: For measuring rotary position
  • Alternative Parts: HRS100SSAB090, SR4P3-B10, SR4P3-C2, E2E-X1R5F1, E2E2-X5B1-M1, and E2E2-X2C134THES1BTA2S22
