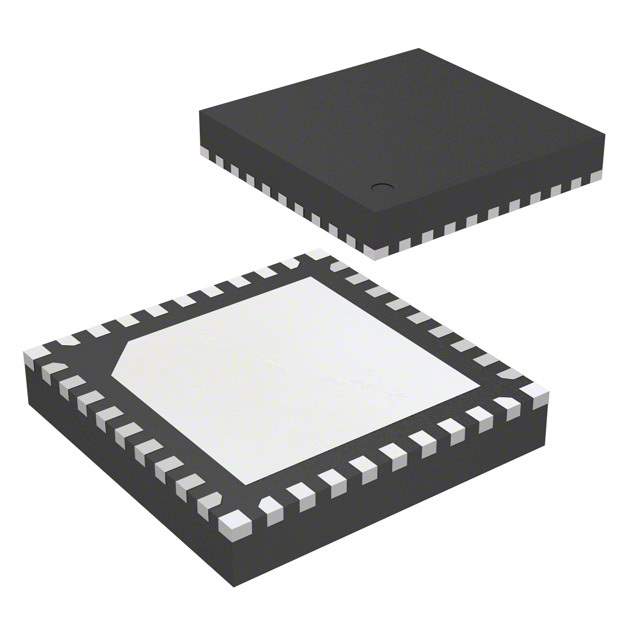

TB67Z800FTG,EL Real Image
Same model may have multiple batches, images only for reference.

TB67Z800FTG,EL

Part No TB67Z800FTG,EL
Manufacturer Toshiba Semiconductor and Storage
Catalog PMIC - Full, Half - Bridge Drivers
Description INVERTER/3 HALF BRIDGE MOSFETS W / Half Bridge (3) Driver General Purpose 36-VQFN (5x5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel
Output Configuration Half Bridge (3)
Applications General Purpose
Interface Logic
Load Type Inductive, Capacitive
Current - Output / Channel 3A
Voltage - Supply 5.5V ~ 22V
Voltage - Load 5.5V ~ 22V
Temperature Range - Operating -40°C ~ 105°C (TA)
Fault Protection Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting SMD (SMT)
Package / Case 36-VFQFN Exposed Pad
Supplier Device Package 36-VQFN (5x5)
Base Product Number TB67Z800
ECCN EAR99
HTSUS 8542.39.0001
Other Names TB67Z800FTGELDKR,TB67Z800FTGELTR,TB67Z800FTG(O,EL),TB67Z800FTGEL,TB67Z800FTGELCT,TB67Z800FTG(OEL)
Standard Package 2,000
Win Source Part Number 1207005-TB67Z800FTG,EL
Ultra Librarian 3D Model Ultra Librarian TB67Z800FTG,EL CAD Model

Description

The TB67Z800FTG,EL is a half-bridge driver integrated circuit (IC) in the PMIC - Full, Half-Bridge Drivers category.

  • Logic Interface: Yes
  • Output Current per Channel: Up to 3A
  • Load Voltage Range: 5.5V to 22V
  • Load Type: Inductive and capacitive
  • Package: 36-VFQFN Exposed Pad
  • Mounting: SMD (SMT)
  • Fault Protection: Current limiting, over temperature, shoot-through, and UVLO
  • Application: General purpose
  • Packaging: Tape and reel
