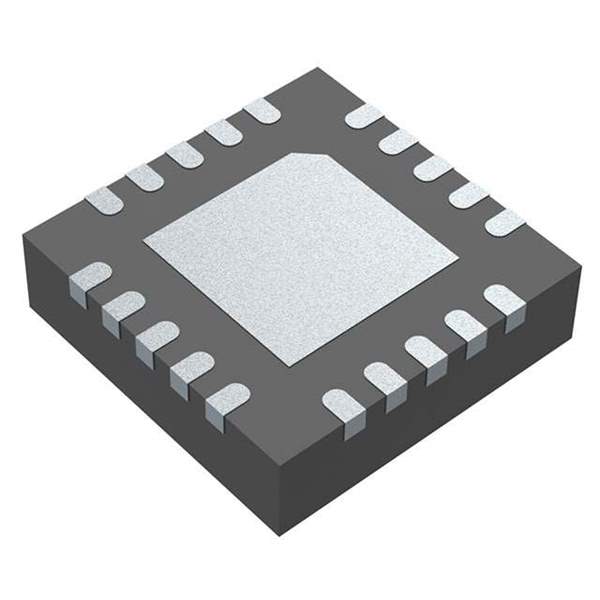

The TPD8S300RUKR is a highly integrated circuit from Texas Instruments designed to provide comprehensive protection for USB Type-C and USB Power Delivery interfaces. This advanced port protector is engineered to safeguard sensitive electronics against a variety of electrical threats, including electrostatic discharge (ESD), overvoltage, overcurrent, and short-circuit events, making it an essential component for any device featuring the increasingly popular USB Type-C connection.

Key Features

• Eight-Channel ESD Solution: The TPD8S300RUKR offers eight channels of transient voltage suppression (TVS) for ESD protection, ensuring the integrity of the USB Type-C data lines and power delivery communication lines.
• Integrated Short-to-VBUS Overvoltage Protection: This device is equipped with short-to-VBUS overvoltage protection on CC1, CC2, and SBU lines, which prevents damage due to mis-wiring or other faults that could otherwise cause a hazardous overvoltage condition.
• Wide Range of Operating Voltage: It supports a broad operating voltage range, making it suitable for various applications that utilize the USB Type-C interface.
• Low Capacitance: The low capacitance of the TPD8S300RUKR ensures that the high-speed data integrity of the USB 3.1 communication channel is preserved, allowing for seamless and reliable data transfer.
• Thermal Shutdown Protection: The thermal shutdown feature provides additional protection, preventing damage from overheating by automatically shutting down the system if the temperature exceeds a certain threshold.

Applications

The TPD8S300RUKR is ideal for a wide range of applications where USB Type-C connectors are used. It is particularly well-suited for use in laptops, desktops, docking stations, smartphones, and other portable devices that require robust protection against electrical mishaps. Its ability to maintain signal integrity while providing strong protective measures makes it a go-to solution for designers looking to enhance the durability and longevity of their USB Type-C equipped devices.

Product Summary

Texas Instruments' TPD8S300RUKR is a state-of-the-art USB Type-C port protector that offers a high level of protection for devices against various electrical threats. Its integration of ESD protection, overvoltage protection, and thermal shutdown into a single package makes it an invaluable component for any USB Type-C implementation. By incorporating the TPD8S300RUKR into their designs, manufacturers can ensure that their products are not only compliant with the latest USB standards but also fortified against the rigors of daily use.
