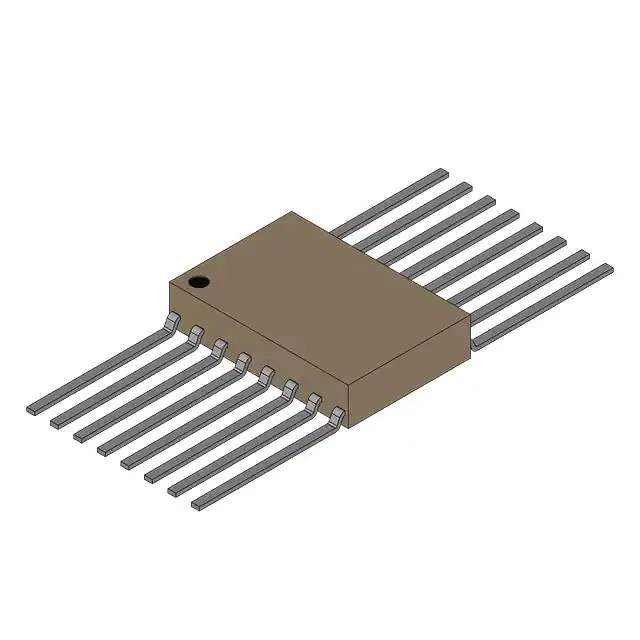

Product Overview: SNJ54LS165AW

The SNJ54LS165AW is a high-performance, 8-bit parallel-load serial-out shift register designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This integrated circuit is part of the 54LS series and is known for its robustness and reliability, making it an ideal choice for a wide range of digital applications.

Constructed with Low-Power Schottky technology, the SNJ54LS165AW offers a perfect balance between speed and power consumption. Its primary function is to read in data in parallel format, store it, and then shift it out serially, providing an efficient way to convert from parallel to serial data format.

Key Features:

• Parallel-Load Capability: The SNJ54LS165AW allows for the simultaneous loading of 8-bits of data into its register, making it a time-efficient solution for data handling.
• Serial Output: Data is shifted out serially through the QH' output, which can be used to cascade multiple devices for extended word lengths without additional circuitry.
• Complementary Outputs: The device includes both QH and QH' outputs, providing complementary serial outputs for versatile integration into various logic circuits.
• Direct Overriding Clear: A dedicated clear input (CLR) allows for the immediate clearing of the register, ensuring that the system can be quickly reset without the need to shift out the current data.
• Edge-Triggered Clocking: The clock input (CLK) is edge-triggered, allowing for precise control of data shifting on the rising edge of the clock signal.
• Military-Grade Quality: As part of the 54 series, the SNJ54LS165AW meets military specifications, ensuring performance in the most demanding environments.

Applications:

The SNJ54LS165AW is well-suited for a variety of applications that require reliable data shifting and storage. Typical uses include data acquisition systems, digital signal processing, instrumentation, and control systems where high-speed and low-power operation is crucial.

With its durable construction and proven technology, the SNJ54LS165AW from Texas Instruments represents a dependable and efficient solution for your digital data management needs.
