The SN6501QDBVRQ1 is a high-performance transformer driver for isolated power supplies, manufactured by Texas Instruments. This device is specifically designed to provide a reliable and efficient solution for driving low-power transformers in a variety of applications such as industrial, automotive, medical, and telecommunication systems.

Key Features

• Integrated Oscillator: The SN6501QDBVRQ1 includes an internal oscillator, which simplifies the design by eliminating the need for external clocking components.
• Wide Input Voltage Range: It operates over a broad input voltage range, making it versatile for different power supply configurations.
• High Efficiency: The device is designed for high efficiency, which helps in reducing power loss and improving overall system performance.
• Low EMI: With its built-in features, the SN6501QDBVRQ1 minimizes electromagnetic interference, making it suitable for noise-sensitive applications.
• Thermal Protection: It includes thermal shutdown protection, ensuring the device operates within safe temperature limits.

Applications

The SN6501QDBVRQ1 is versatile and can be used in a range of isolated power supply applications. It is ideal for use in:

• Isolated interface power supplies for CAN, RS-485, RS-232, SPI, I2C, etc.
• Industrial automation and control systems.
• Medical equipment and patient safety isolation.
• Isolated power supplies for sensors and data acquisition.

Quality and Reliability

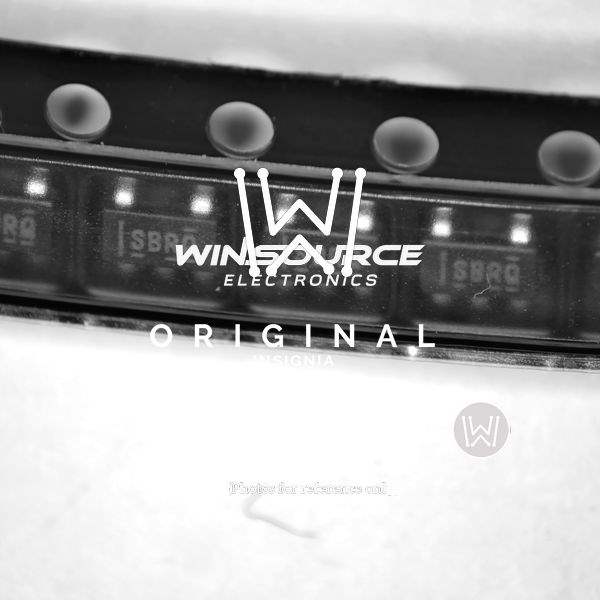

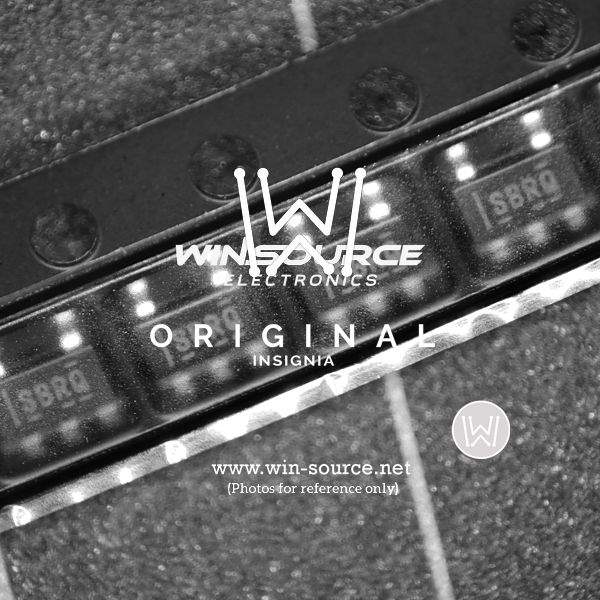

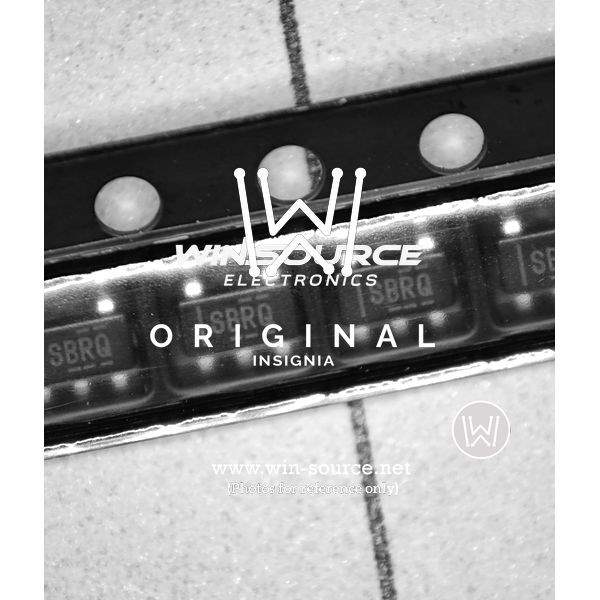

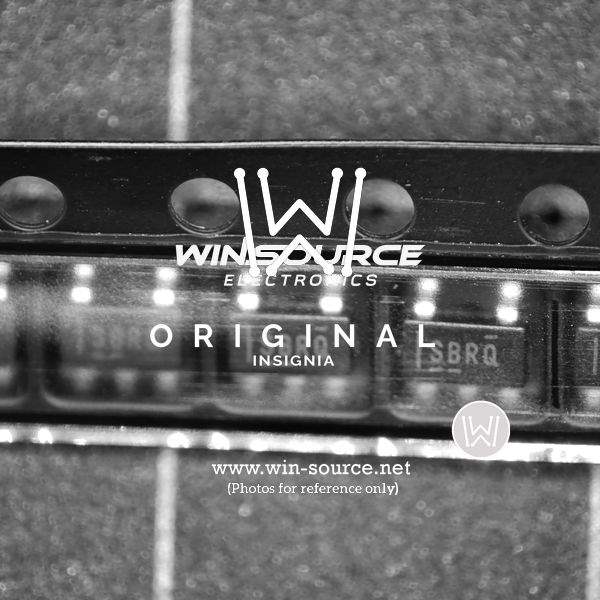

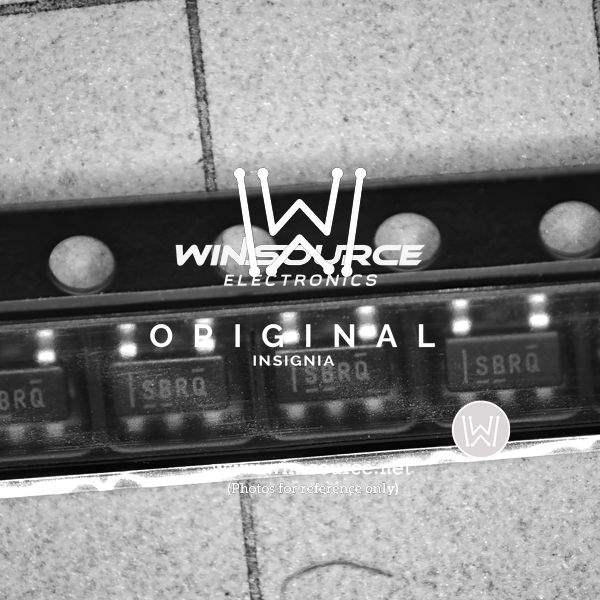

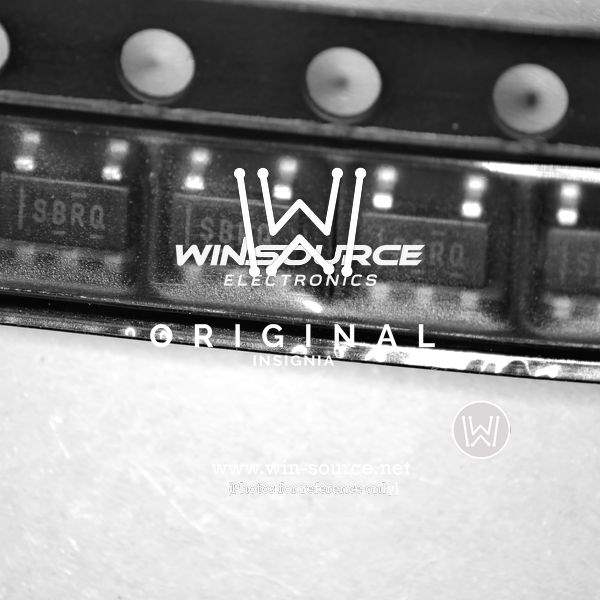

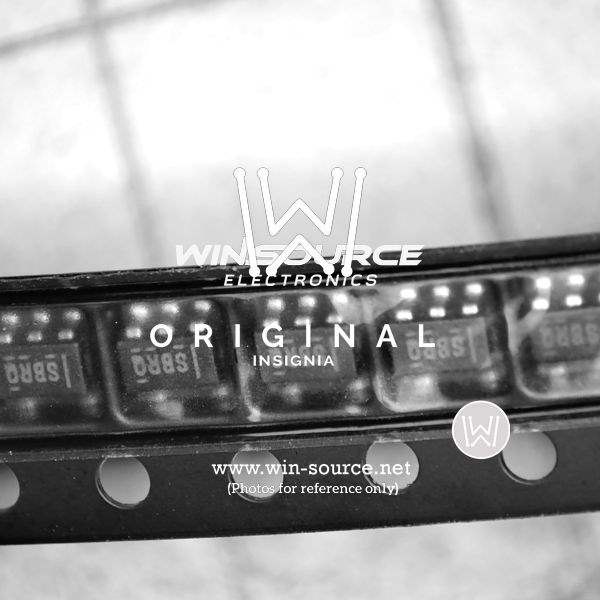

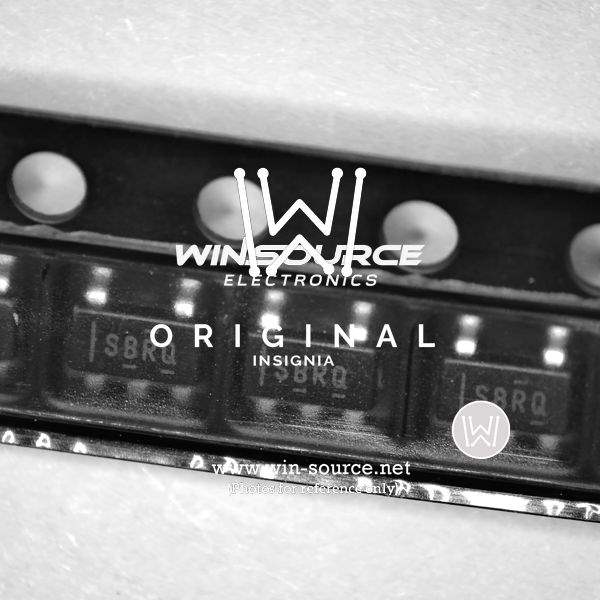

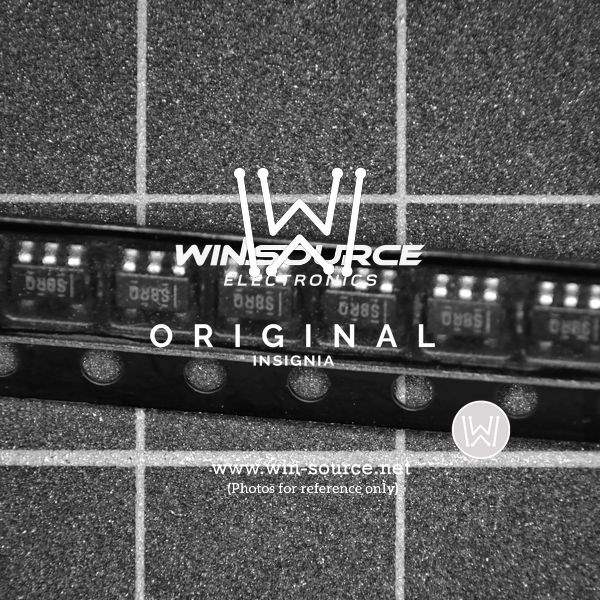

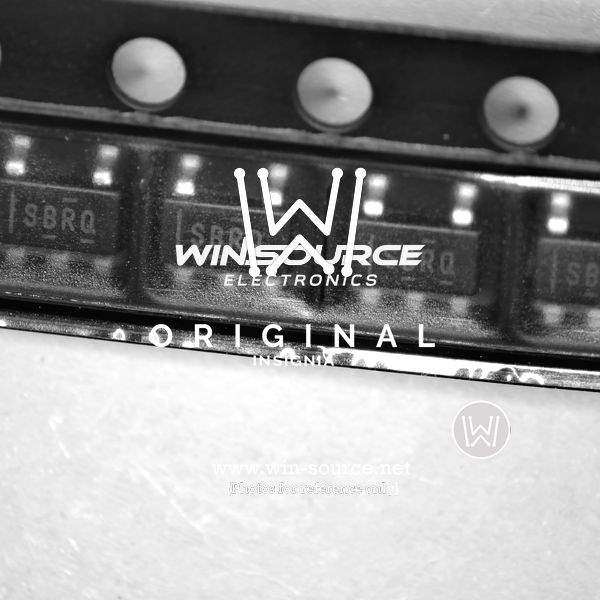

Texas Instruments is known for its commitment to quality and the SN6501QDBVRQ1 is no exception. It is designed to meet stringent automotive industry standards, ensuring robust performance and reliability in demanding environments. The device is available in a compact SOT-23-5 package, which is suitable for space-constrained applications.
