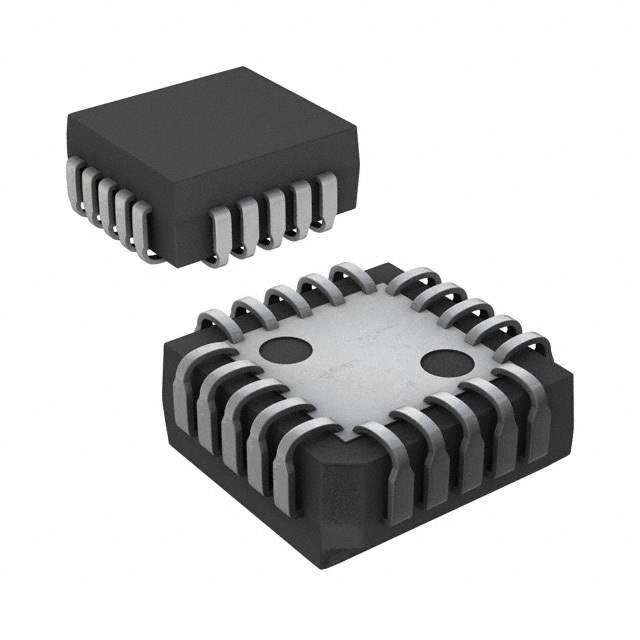

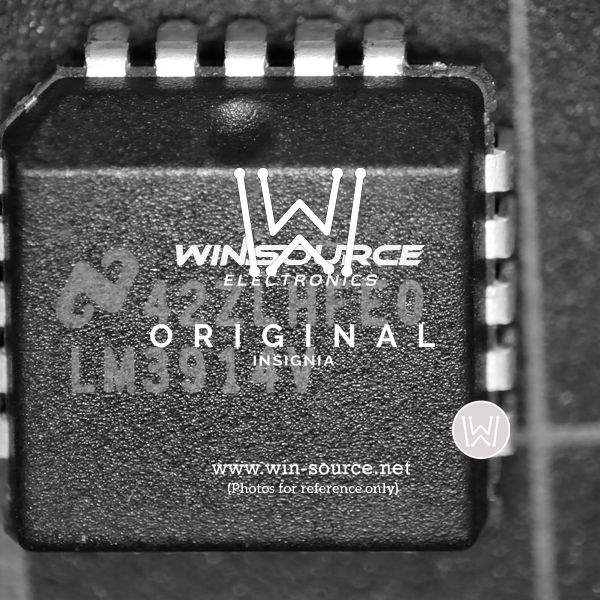

LM3914VX/NOPB Real Image LM3914VX/NOPB Real Image
Same model may have multiple batches, images only for reference.
LM3914VX/NOPB Real Image LM3914VX/NOPB Real Image
LM3914VX/NOPB Real Image LM3914VX/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM3914VX/NOPB

Part No LM3914VX/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Display Drivers
Description IC DRIVER DOT/BAR DISPLAY 20PLCC
Datasheet
LM3914VX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Display Type LED, LCD, Vacuum Fluorescent (VF)
Configuration Dot/Bar Display
Digits or Characters 10 Steps
Operating Supply Current 6.1mA
Supply Voltage - Operating 3 V to 20 V
Temperature Range - Operating 0°C to 70°C
Mounting SMD (SMT)
Case / Package 20-PLCC (9x9)
Win Source Part Number 113499-LM3914VX/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3914VX/NOPB CAD Model

Description

The LM3914VX/NOPB is an innovative and versatile product from Texas Instruments, a leading global semiconductor company, renowned for its high-quality and reliable products.

  • Display Driver: Dot/bar display driver
  • Voltage Levels: Detect and process analog voltage levels
  • Supply Voltage: Single supply of less than 3V to over 15V
  • Logic Family: Flexibly interfaced with any logic family
  • Scale: Expanded without any external resistor to indicate a 20-step linear scale
  • Displays: Capable of driving LEDs of any color, or low current incandescent lamps
  • Display Modes: Drive either a bar graph or a moving dot display
  • Durability: Resistant to shock and vibration
  • Operational Life: Long
